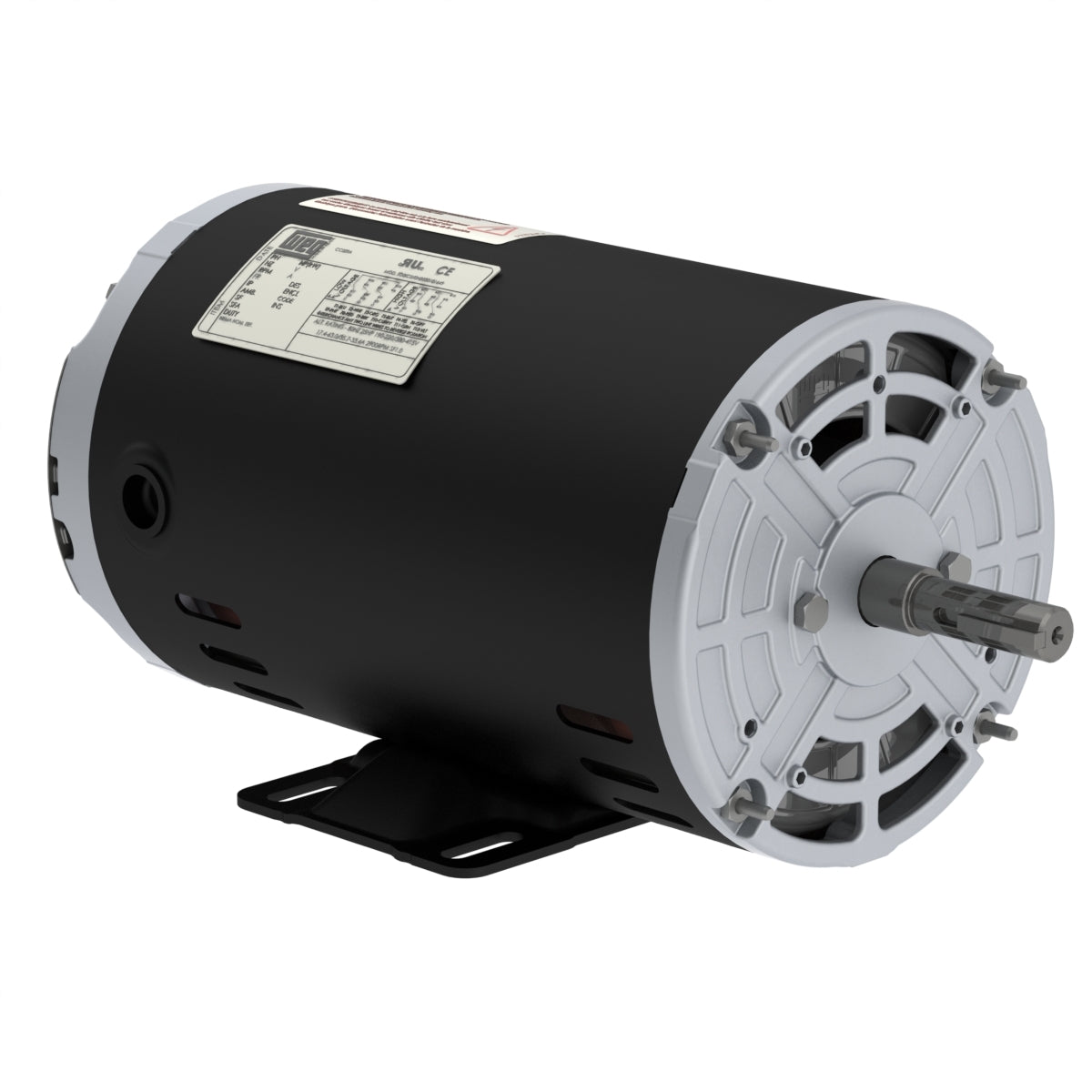

Weg Electric 00158OT3J56-S, 1 1/2 Hp, 1800 Rpm, 56H FR, 380/660 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel.

00158OT3J56-S, 1 1/2 Hp, 1800 Rpm, 56H FR, 380/660 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for the severest applications.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 380/660 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56H
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 380/660 V
Rated current 2.54/1.46 A
L. R. Amperes 22.4/12.8 A
LRC 8.8x(Code L)
No load current 1.57/0.906 A
Rated torque 4.48 ft.lb
Locked rotor torque 290 %
Breakdown torque 350 %
