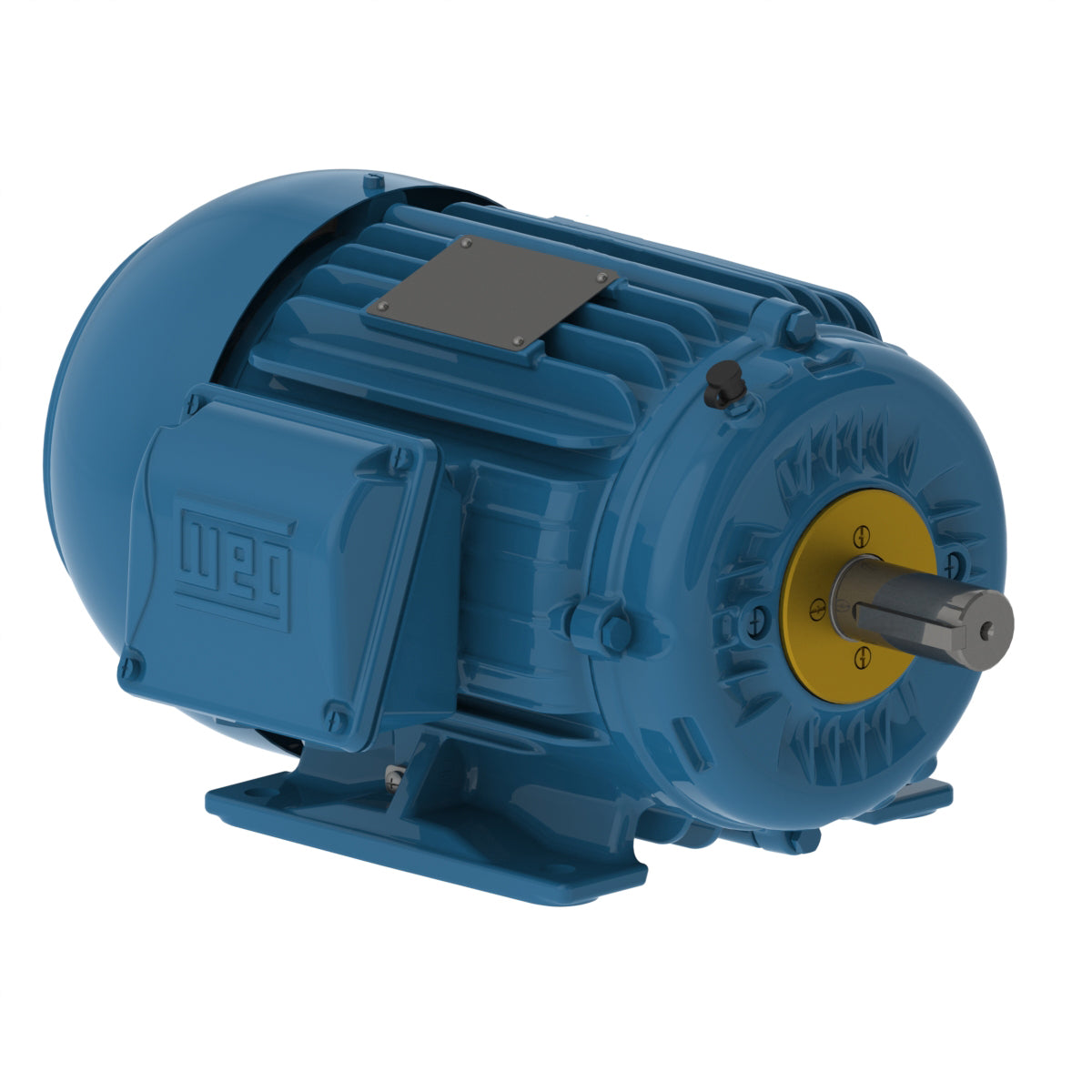

Weg Electric 00158ST3HIE145T-W22, 1 1/2 Hp, 1800 Rpm, 143/5T FR, 575 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel.

00158ST3HIE145T-W22, 1 1/2 Hp, 1800 Rpm, 143/5T FR, 575 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 143/5T
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 575 V
Rated current 1.62 A
L. R. Amperes 13.6 A
LRC 8.4x(Code L)
No load current 0.880 A
Rated torque 4.49 ft.lb
Locked rotor torque 290 %
Breakdown torque 350 %
Locked rotor time 25s (cold) 14s (hot)
