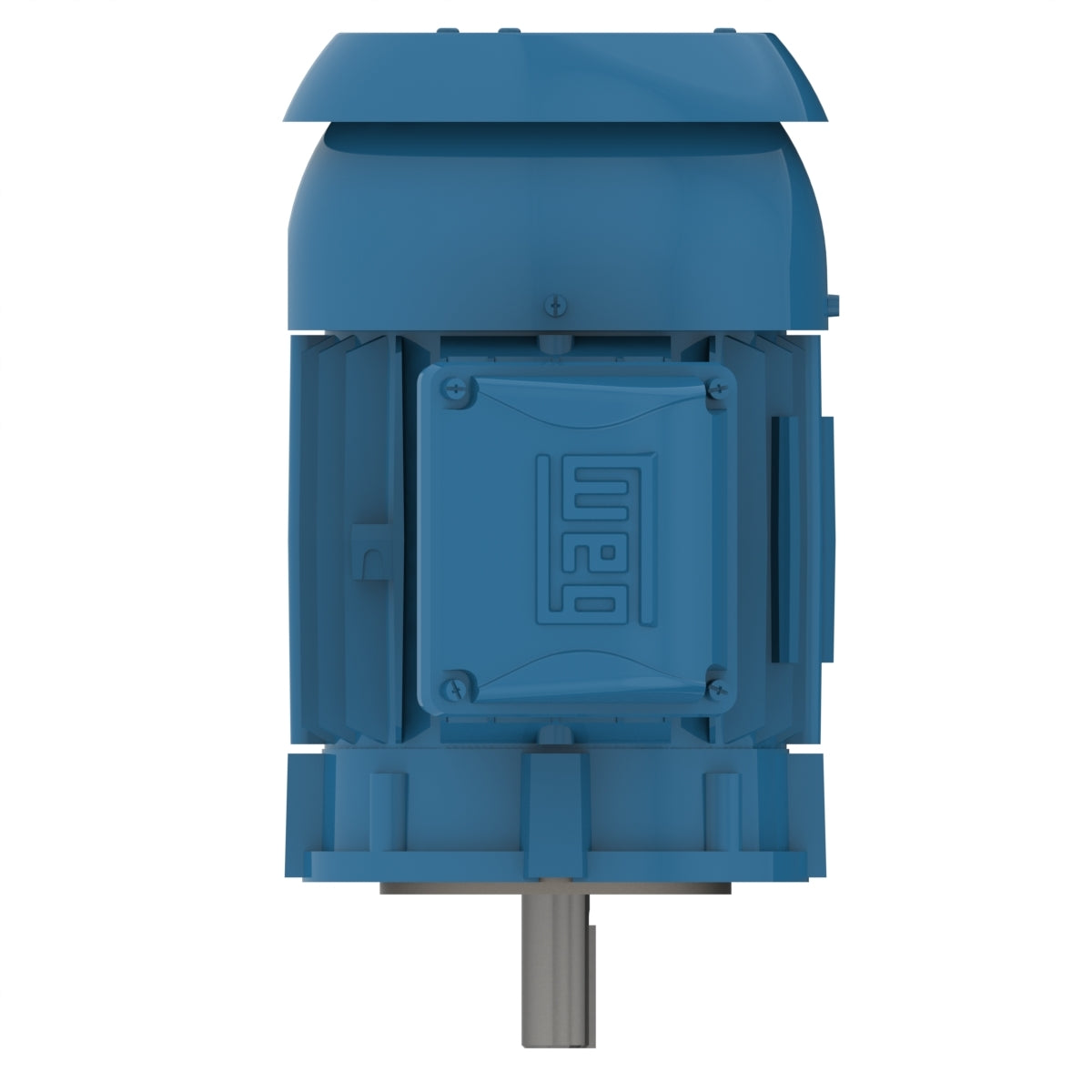

Weg Electric 00158ST3QIER145TC-W2, 1 1/2 Hp, 1800 Rpm, 145TC FR, 460 Vac, TEFC, 3 PH, Footless.

00158ST3QIER145TC-W2, 1 1/2 Hp, 1800 Rpm, 145TC FR, 460 Vac, TEFC, 3 PH, Footless.

Engineering Data

The W22 IEEE841 motors are designed for the petrochemical and chemical industries. They have rugged construction and long service life, for the most demanding industrial applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 145TC
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 460 V
Rated current 2.02 A
L. R. Amperes 17.0 A
LRC 8.4x(Code L)
No load current 1.10 A
Rated torque 4.49 ft.lb
Locked rotor torque 290 %
Breakdown torque 350 %
Locked rotor time 25s (cold) 14s (hot)
