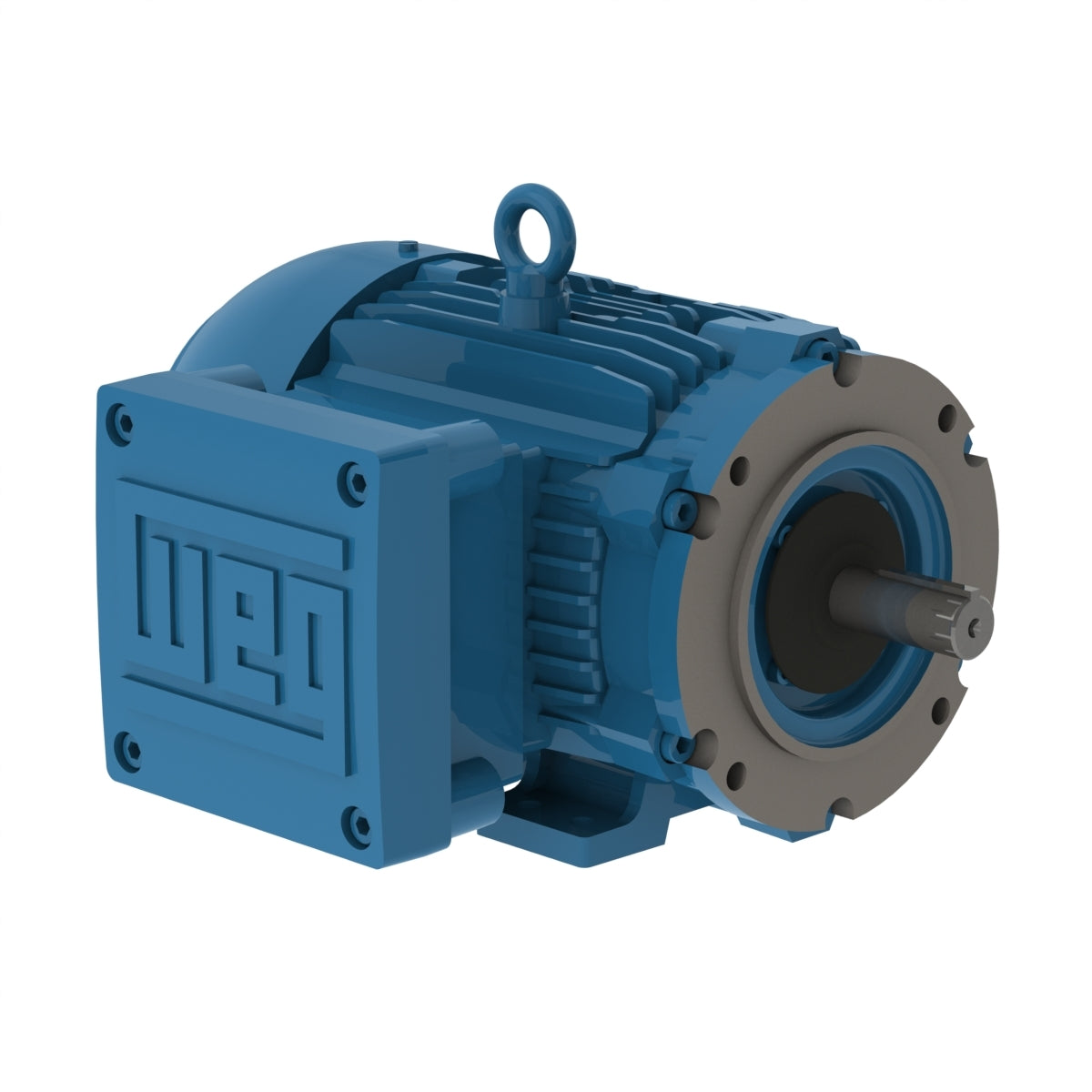

Weg Electric 00158XT3H145TC, 1 1/2 Hp, 1800 Rpm, 143/5T FR, 575 Vac, TEFC, 3 PH, Foot-mounted, Explosion-Proof Motor.

00158XT3H145TC, 1 1/2 Hp, 1800 Rpm, 143/5T FR, 575 Vac, TEFC, 3 PH, Foot-mounted, Explosion-Proof Motor.

Engineering Data

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 143/5TC
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 575 V
Rated current 1.64 A
L. R. Amperes 14.6 A
LRC 8.9x(Code L)
No load current 0.960 A
Rated torque 4.49 ft.lb
Locked rotor torque 270 %
Breakdown torque 350 %
Locked rotor time 25s (cold) 14s (hot)
