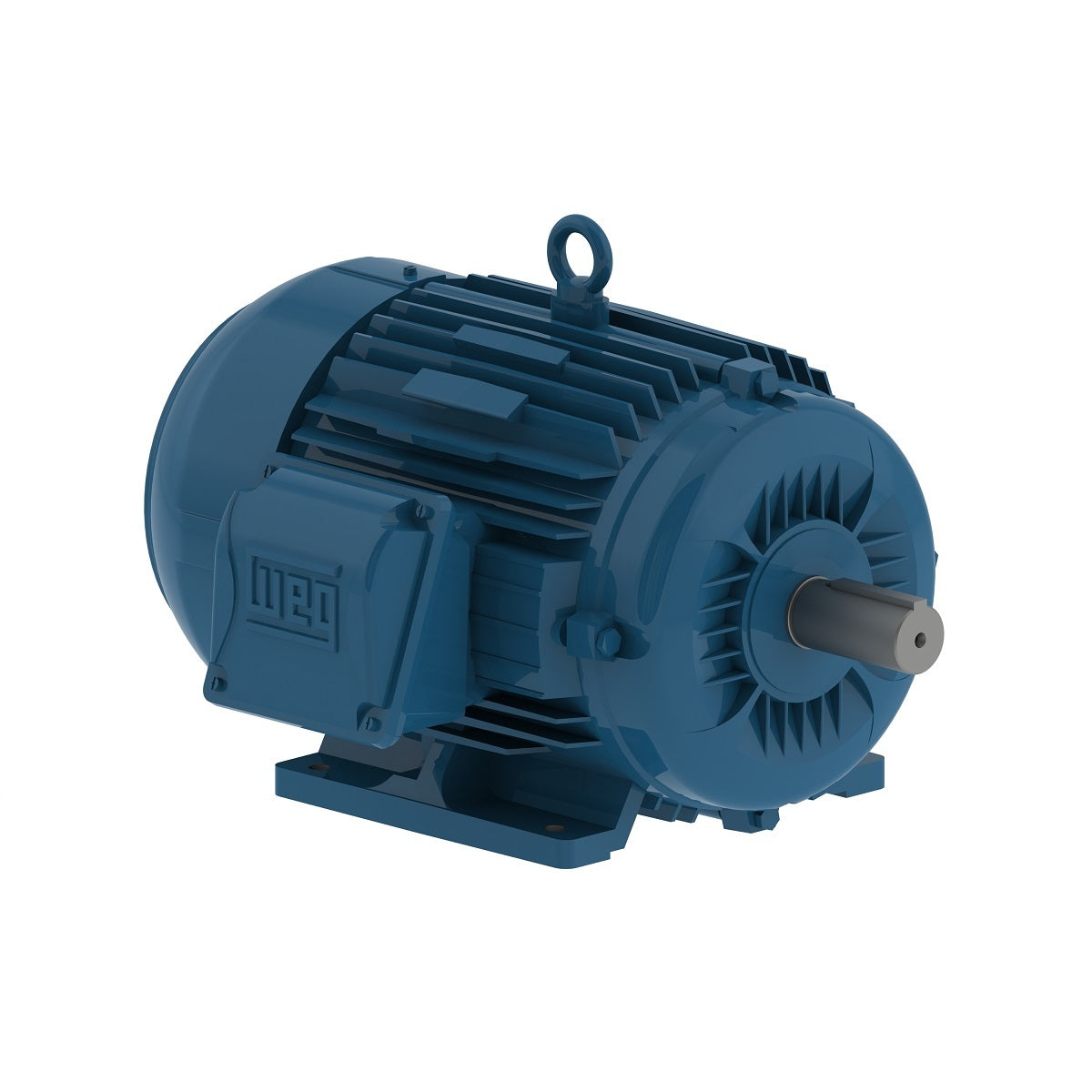

Weg Electric 00159ET3E184T-W22, 1 1/2 Hp, 900 Rpm, 182/4T FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

00159ET3E184T-W22, 1 1/2 Hp, 900 Rpm, 182/4T FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4T
Output 1.5 HP (1.1 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 865 rpm
Slip 3.89 %
Rated voltage 230/460 V
Rated current 5.40/2.70 A
L. R. Amperes 31.9/15.9 A
LRC 5.9x(Code K)
No load current 4.00/2.00 A
Rated torque 9.11 ft.lb
Locked rotor torque 290 %
Breakdown torque 340 %
