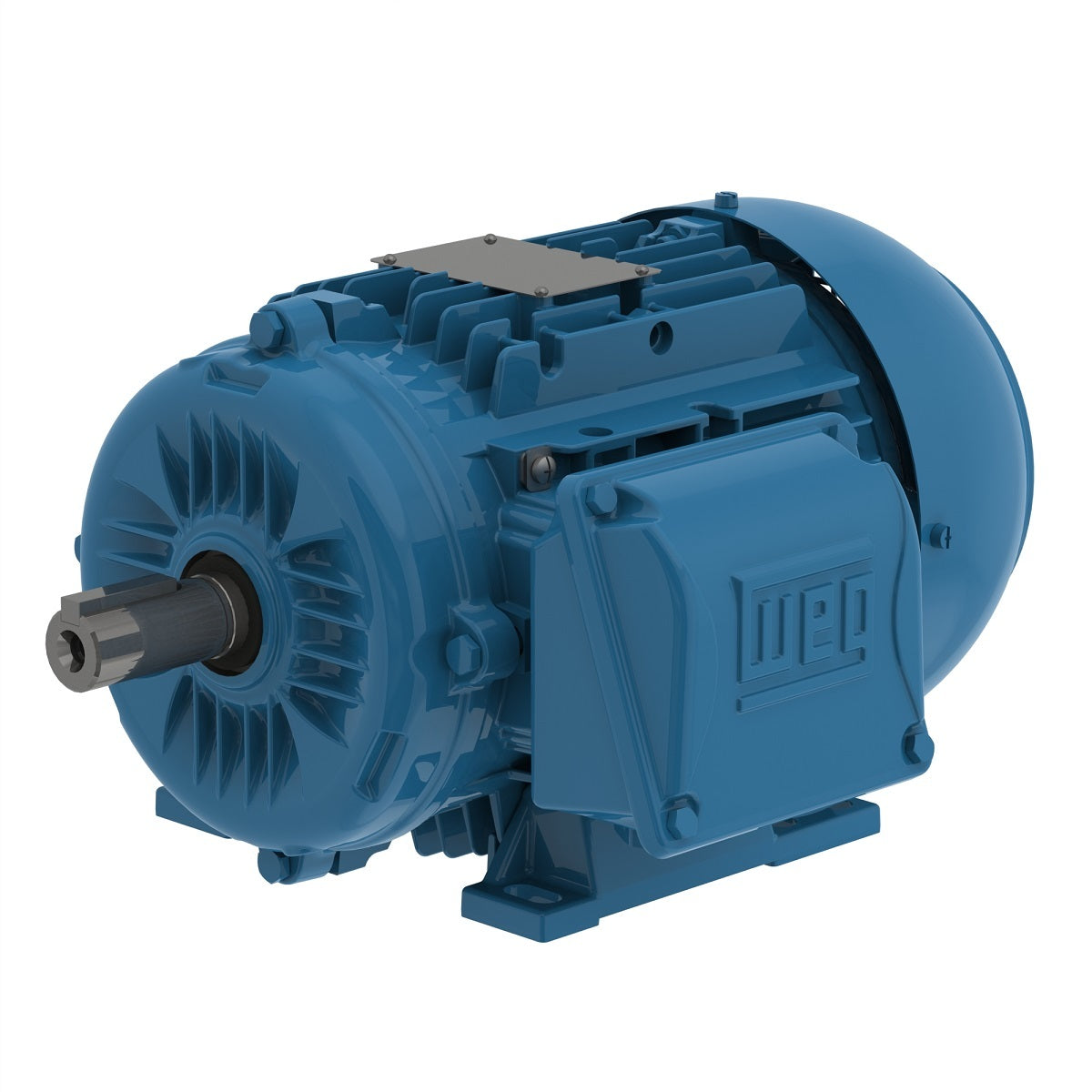

Weg Electric 00159ST3QIE184TC-W22, 1 1/2 Hp, 1800 Rpm, 182/4TC FR, 460 Vac, TEFC, 3 PH, Foot-mounted, Multimounting.

00159ST3QIE184TC-W22, 1 1/2 Hp, 1800 Rpm, 182/4TC FR, 460 Vac, TEFC, 3 PH, Foot-mounted, Multimounting.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4TC
Output 1.5 HP (1.1 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 865 rpm
Slip 3.89 %
Rated voltage 460 V
Rated current 2.70 A
L. R. Amperes 15.9 A
LRC 5.9x(Code K)
No load current 2.00 A
Rated torque 9.11 ft.lb
Locked rotor torque 290 %
Breakdown torque 340 %
Locked rotor time 30s (cold) 17s (hot)
