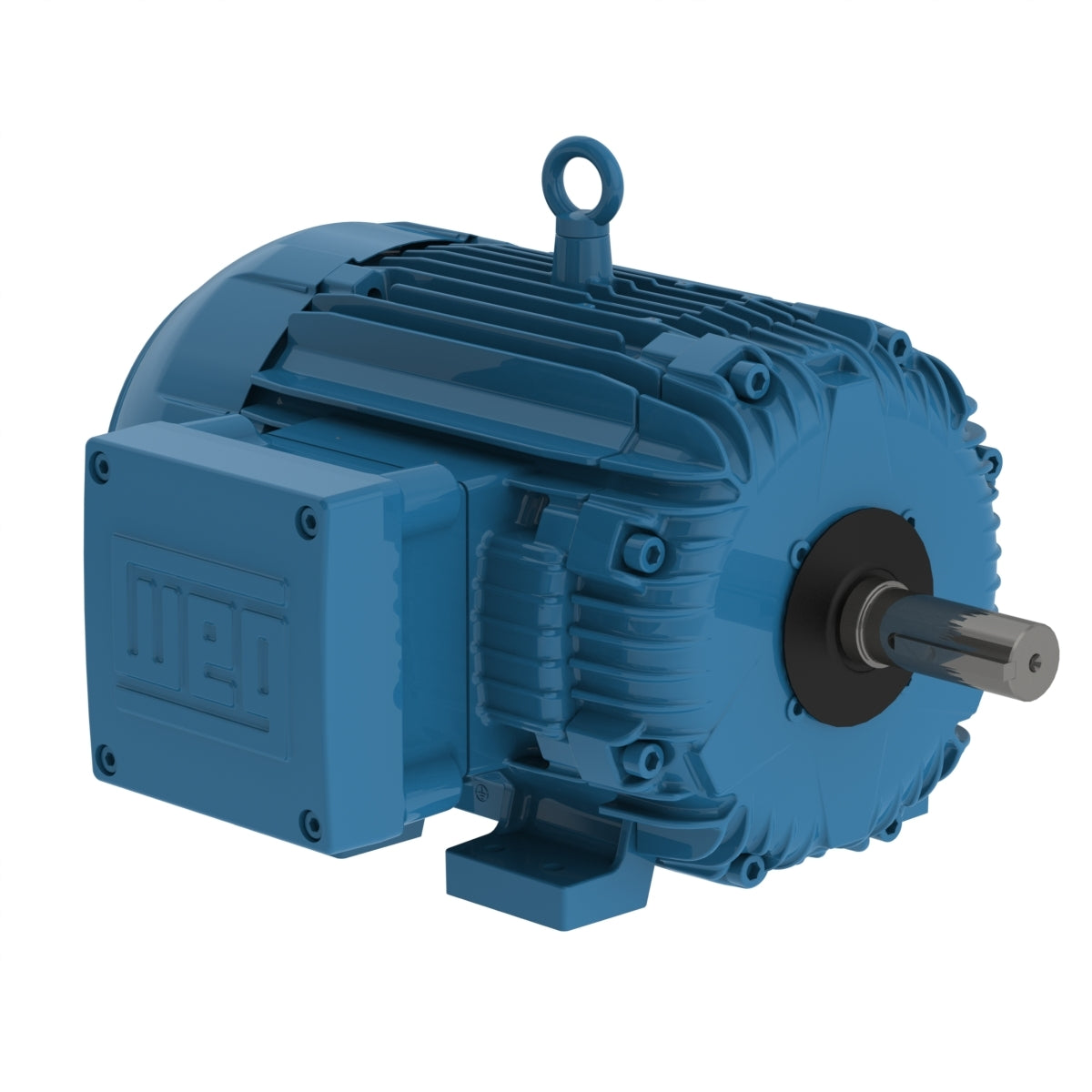

Weg Electric 00159XT3E184T, 1 1/2 Hp, 900 Rpm, 182/4TC FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, Explosion Proof.

00159XT3E184T, 1 1/2 Hp, 900 Rpm, 182/4TC FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, Explosion Proof.

Engineering Data

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.

Product features

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4T
Output 1.5 HP (1.1 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 860 rpm
Slip 4.44 %
Rated voltage 230/460 V
Rated current 5.68/2.84 A
L. R. Amperes 35.2/17.6 A
LRC 6.2x(Code L)
No load current 3.80/1.90 A
Rated torque 9.16 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 30s (cold) 17s (hot)
