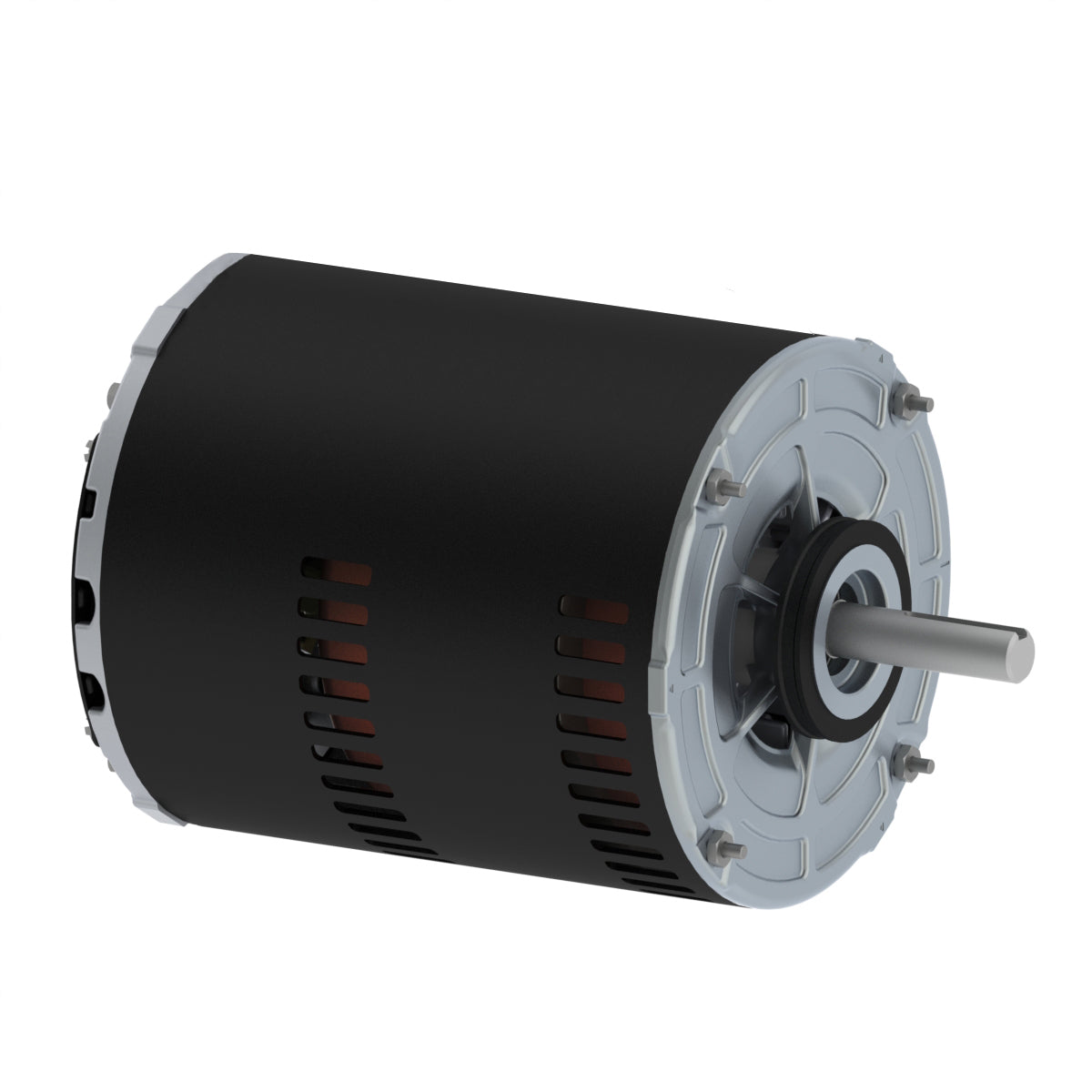

Weg Electric 00182OS1DEC56, 1/3 Hp, 12001800 Rpm, E56X180 FR, 240 Vac, 1 PH, ODP, Foot-mounted, Fan and Exhaust Start Capacitor.

00182OS1DEC56, 1/3 Hp, 12001800 Rpm, E56X180 FR, 240 Vac, 1 PH, ODP, Foot-mounted, Fan and Exhaust Start Capacitor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 240 V
Number of poles 6/4
Degree of Protection IP21
Synchronous speed 1200/1800 rpm
Output rating 1/3/1.0 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame E56X180
Output 0.75 kW (1 HP)
Number of Poles 6/4
Frequency 60 Hz
Rated speed 1725 rpm
Slip 4.17 %
Rated voltage 240 V
Rated current 6.45 A
L. R. Amperes 31.0 A
LRC 4.8x(Code J)
No load current 4.89 A
Rated torque 3.06 ft.lb
Locked rotor torque 125 %
Breakdown torque 240 %
Locked rotor time 10s (cold) 6s (hot)
Insulation Class B
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CW
Noise level² 46.0 dB(A)
