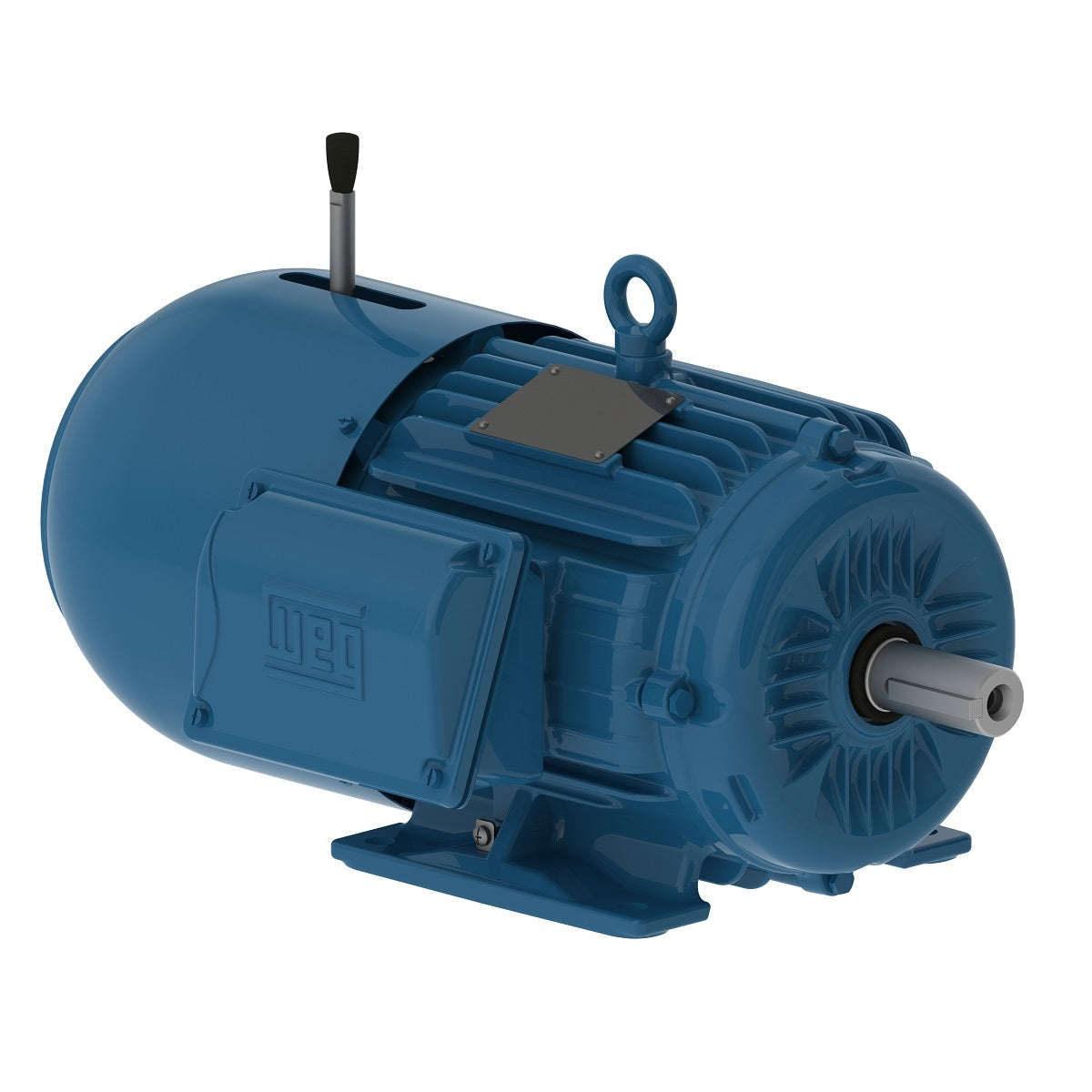

Weg Electric 00209ET3EBM213T-W22, 2 Hp, 900 Rpm, 213/5T FR, 230/460 Vac, TEFC, 3 PH, Foot-mounted, Brake Motor.

00209ET3EBM213T-W22, 2 Hp, 900 Rpm, 213/5T FR, 230/460 Vac, TEFC, 3 PH, Foot-mounted, Brake Motor.

Engineering Data

The W22 Brake Motor is the ideal motor for applications that require immediate, accurate and safe stops, and position control. They meet the needs of different applications, such as load elevators, hoists, shears, machining equipment, looms, packaging machines, conveyors, washing and bottling machines, bending machines, among others.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5T
Output 2 HP (1.5 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 875 rpm
Slip 2.78 %
Rated voltage 230/460 V
Rated current 6.78/3.39 A
L. R. Amperes 51.5/25.7 A
LRC 7.6x(Code M)
No load current 4.60/2.30 A
Rated torque 12.0 ft.lb
Locked rotor torque 240 %
Breakdown torque 290 %
Locked rotor time 70s (cold) 39s (hot)
