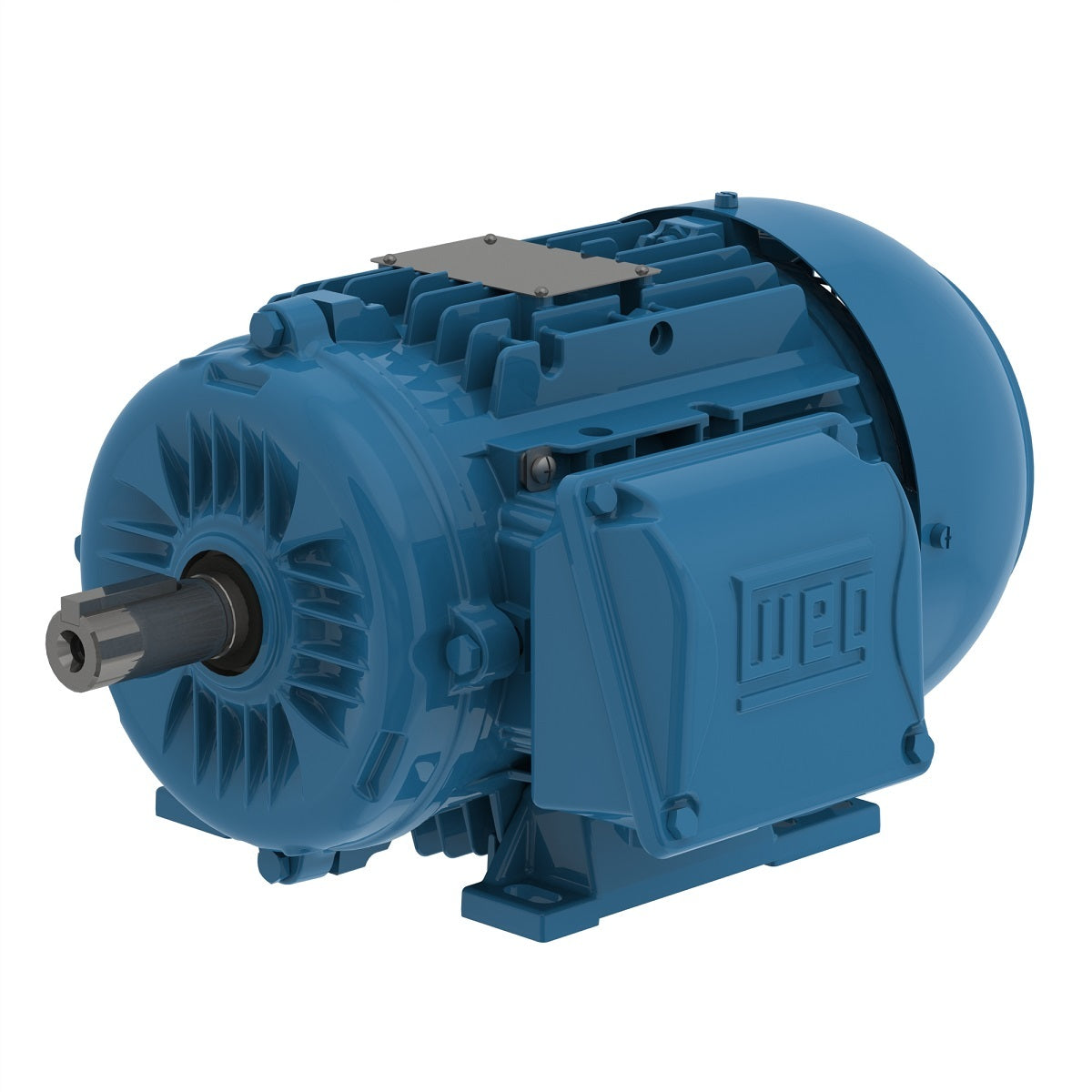

Weg Electric 00209ET3YAL132S-W22, 3 Hp, 900 Rpm, 132S FR, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, Multimounting.

00209ET3YAL132S-W22, 3 Hp, 900 Rpm, 132S FR, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, Multimounting.

Engineering Data

Aluminum frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 132S
Output 3 HP (2.2 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 870 rpm
Slip 3.33 %
Rated voltage 460 V
Rated current 4.75 A
L. R. Amperes 35.1 A
LRC 7.4
No load current 3.00 A
Rated torque 18.1 ft.lb
Locked rotor torque 250 %
Breakdown torque 290 %
Locked rotor time 57s (cold) 32s (hot)
