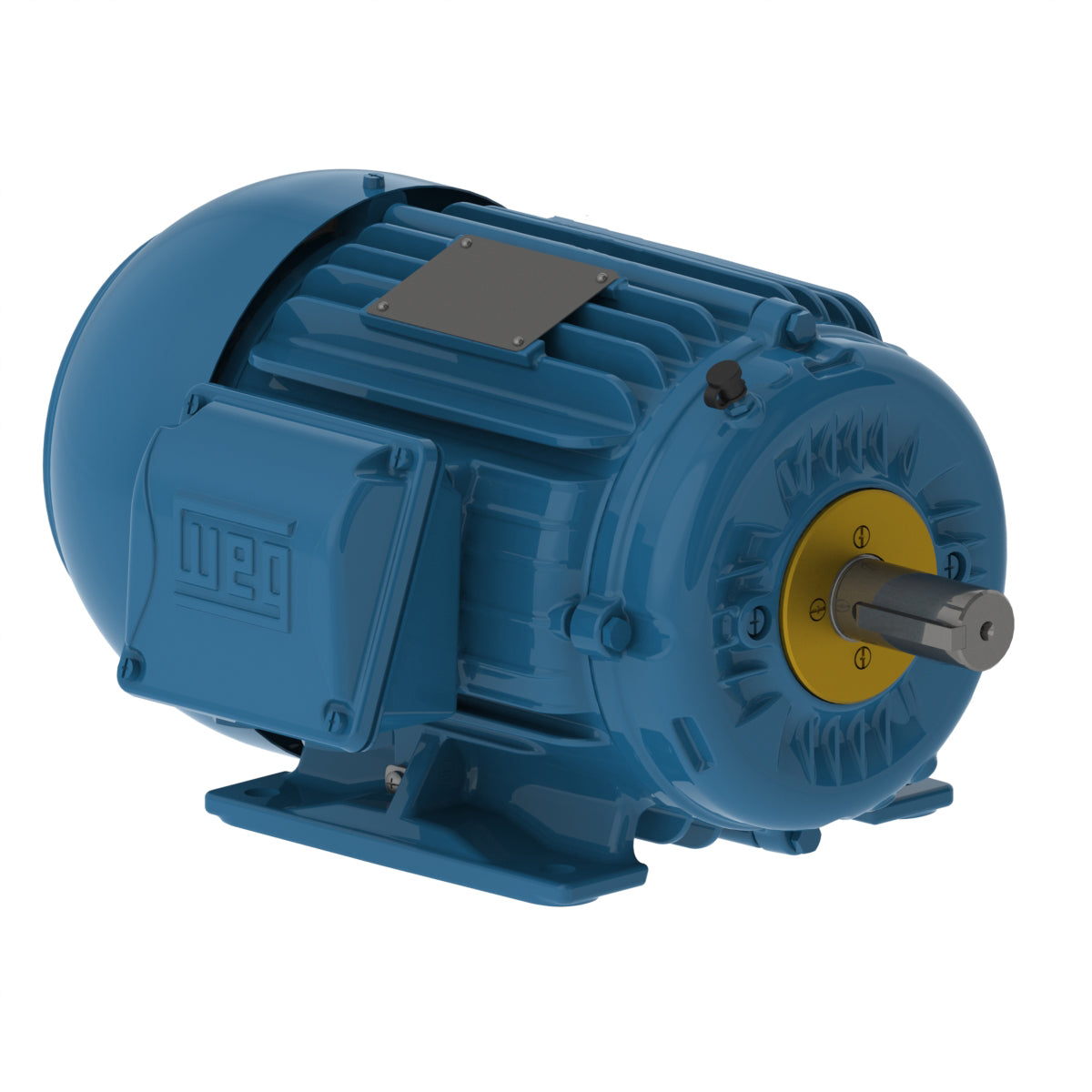

Weg Electric 00209ST3QIE213T-W22, 2 Hp, 900 Rpm, 213/5T FR, 460 Vac, TEFC, 3 PH, Foot-mounted, Multimounting.

00209ST3QIE213T-W22, 2 Hp, 900 Rpm, 213/5T FR, 460 Vac, TEFC, 3 PH, Foot-mounted, Multimounting.

Engineering Data

The W22 IEEE841 motors are designed for the petrochemical and chemical industries. They have rugged construction and long service life, for the most demanding industrial applications.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5T
Output 2 HP (1.5 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 875 rpm
Slip 2.78 %
Rated voltage 460 V
Rated current 3.39 A
L. R. Amperes 25.7 A
LRC 7.6x(Code M)
No load current 2.30 A
Rated torque 12.0 ft.lb
Locked rotor torque 240 %
Breakdown torque 290 %
Locked rotor time 70s (cold) 39s (hot)
Moment of inertia (J) 1.79 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 180 lb
