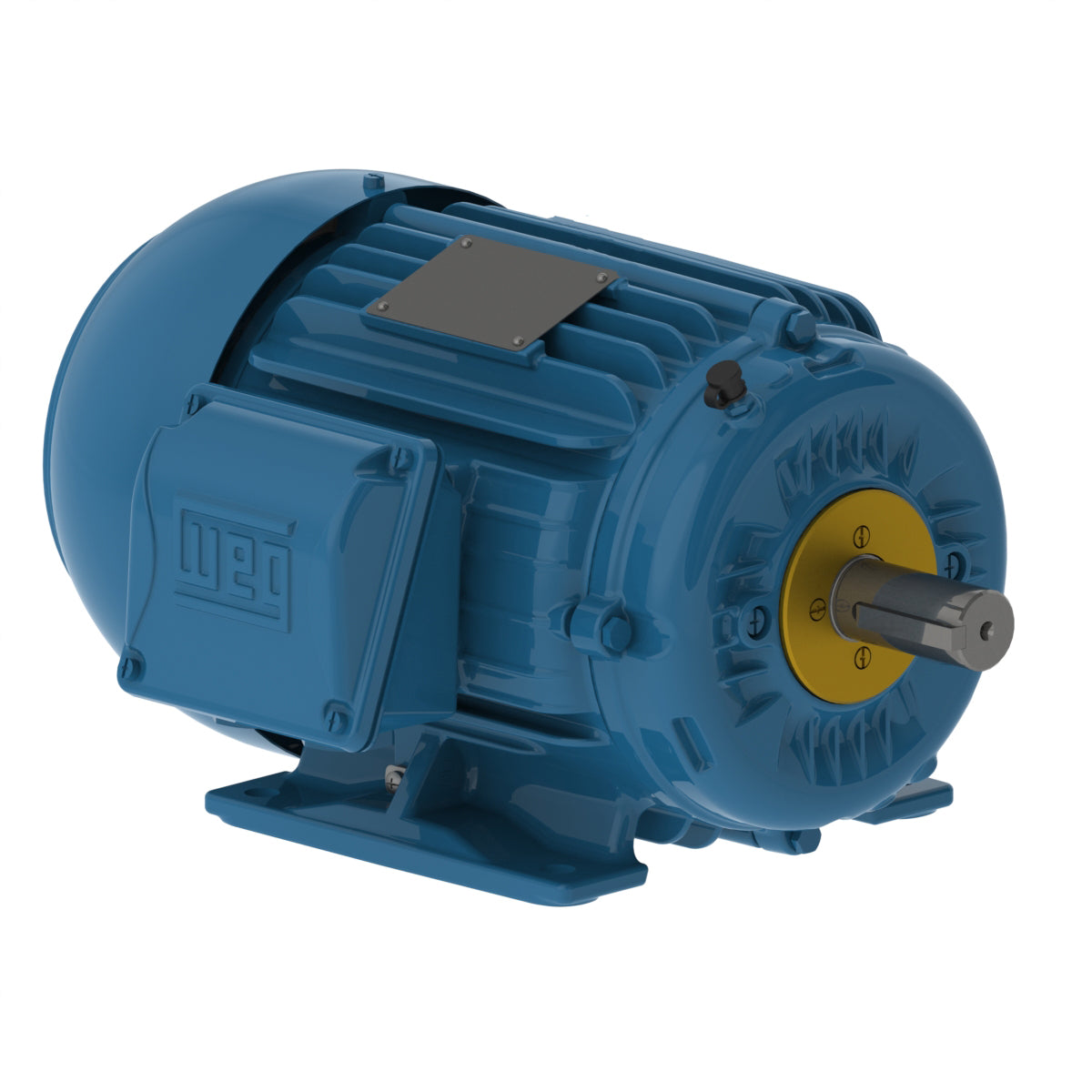

Weg Electric 00209ST3QIE213TC-W22, 2 Hp, 900 Rpm, 213/5TC FR, 460 Vac, TEFC, 3 PH, Foot-mounted, Multimounting.

00209ST3QIE213TC-W22, 2 Hp, 900 Rpm, 213/5TC FR, 460 Vac, TEFC, 3 PH, Foot-mounted, Multimounting.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5TC
Output 2 HP (1.5 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 875 rpm
Slip 2.78 %
Rated voltage 460 V
Rated current 3.39 A
L. R. Amperes 25.7 A
LRC 7.6x(Code M)
No load current 2.30 A
Rated torque 12.0 ft.lb
Locked rotor torque 240 %
Breakdown torque 290 %
Locked rotor time 70s (cold) 39s (hot)
