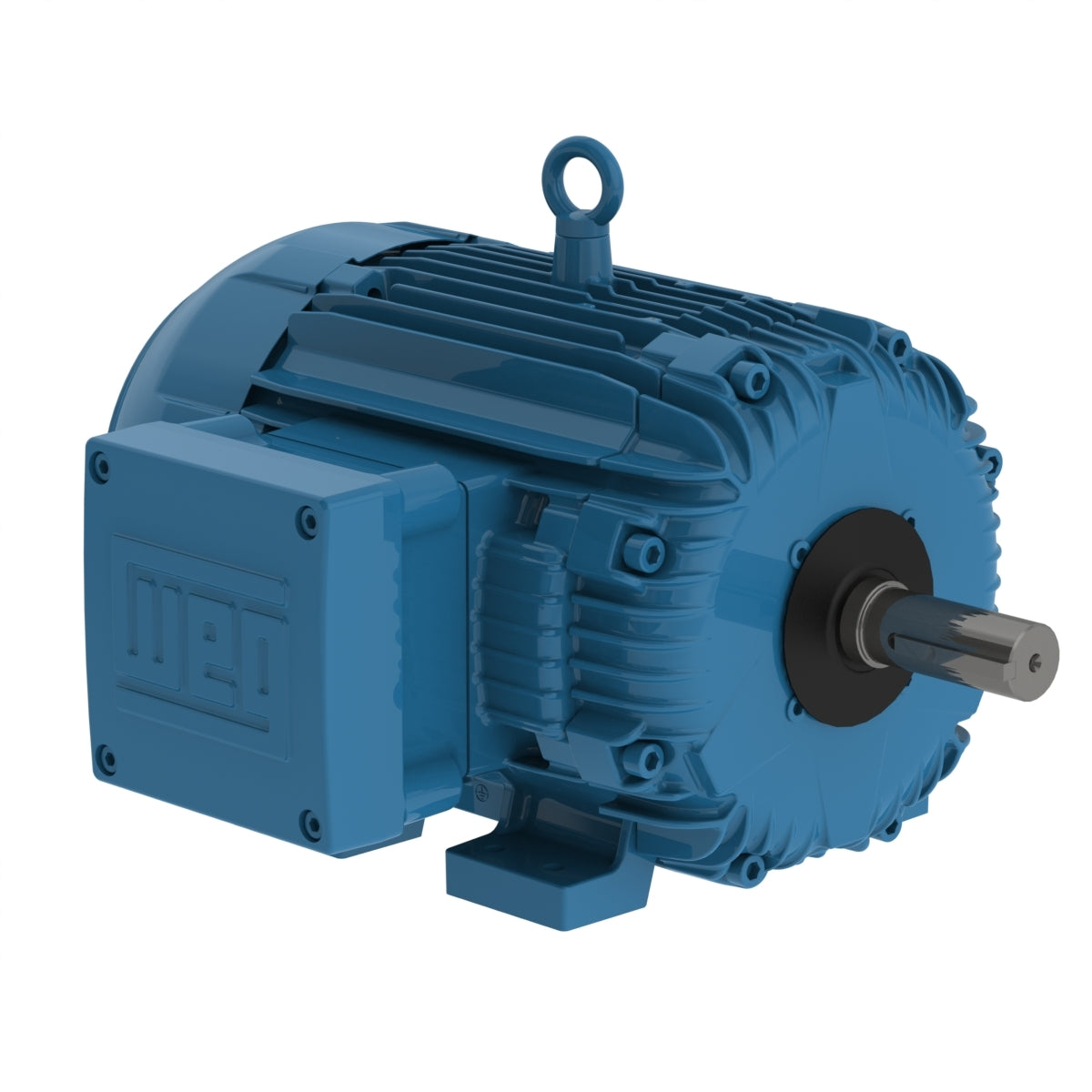

Weg Electric 00212AT3ECT184T-W22, 2 Hp, 1200 Rpm, 182/4T FR, 230/460 Vac, TEAO, 3 PH, Foot-mounted, Cooling Tower.

00212AT3ECT184T-W22, 2 Hp, 1200 Rpm, 182/4T FR, 230/460 Vac, TEAO, 3 PH, Foot-mounted, Cooling Tower.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC410 - TEAO

Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 6.44/3.22 A
L. R. Amperes 48.3/24.2 A
LRC 7.5x(Code L)
No load current 3.80/1.90 A
Rated torque 8.98 ft.lb
Locked rotor torque 300 %
Breakdown torque 350 %
Locked rotor time 55s (cold) 31s (hot)
