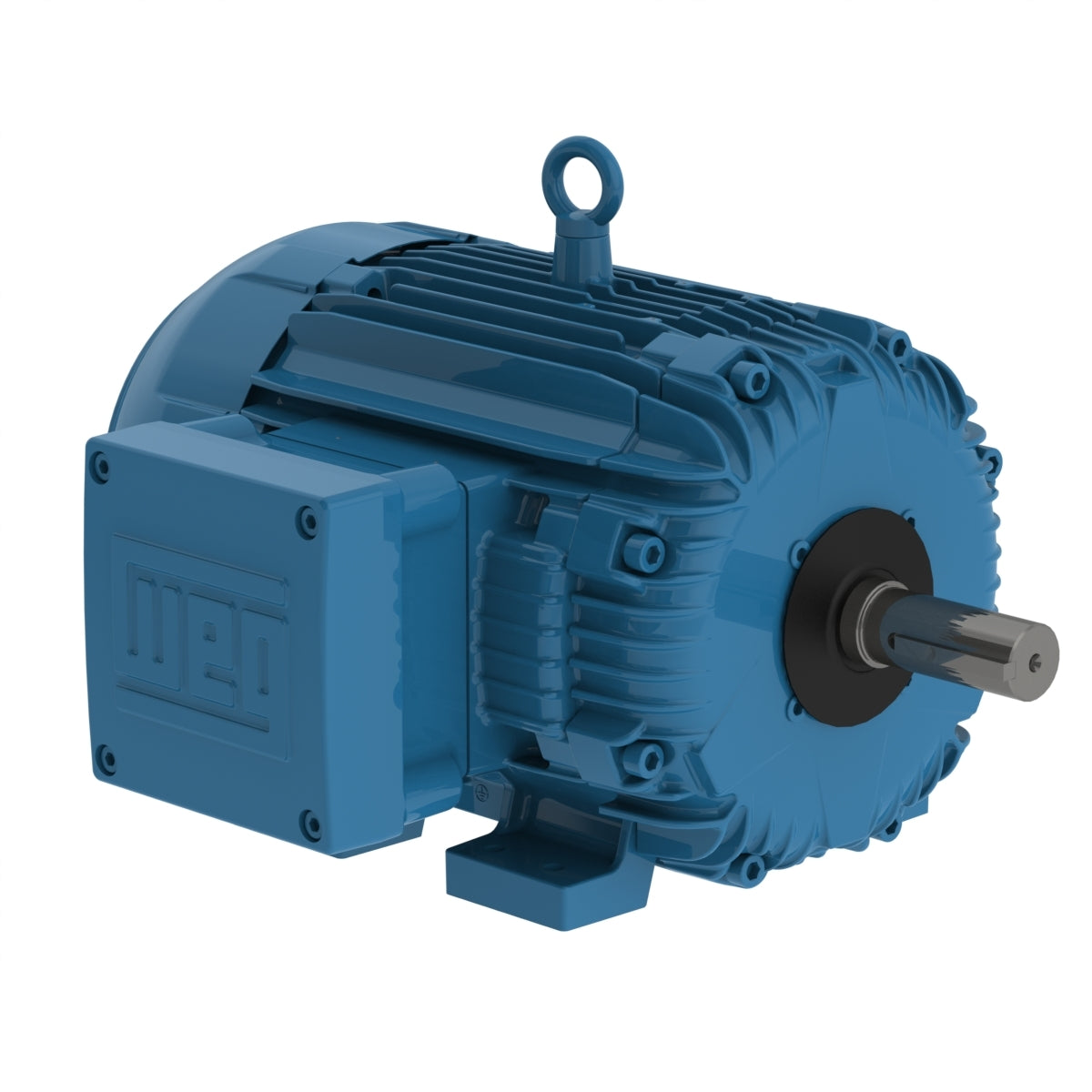

Weg Electric 00212AT3ECT184TF1-W2, 2 Hp, 1200 Rpm, 182/4T FR, 208-230/460//380 Vac, TEAO, 3 PH, Foot-mounted, Explosion Proof.

00212AT3ECT184TF1-W2, 2 Hp, 1200 Rpm, 182/4T FR, 208-230/460//380 Vac, TEAO, 3 PH, Foot-mounted, Explosion Proof.

Engineering Data

These TEFC motors are built according to NEMA standard, and designed to operate with 100% of humidity in the most corrosive environments. All the line is certified for use with frequency inverter, and can operate in both the horizontal and vertical position. The Cooling Tower was tested according to the IEEE 112, method B, and it has efficiency values certified by UL (CSA C390). They ensure high efficiency levels with high torque, even at low speeds.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO

Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 7.13-6.44/3.22 A
L. R. Amperes 53.5-48.3/24.2 A
LRC 7.5x(Code L)
No load current 3.28-3.80/1.90 A
Rated torque 8.98 ft.lb
Locked rotor torque 300 %
Breakdown torque 350 %
Locked rotor time 55s (cold) 31s (hot)
