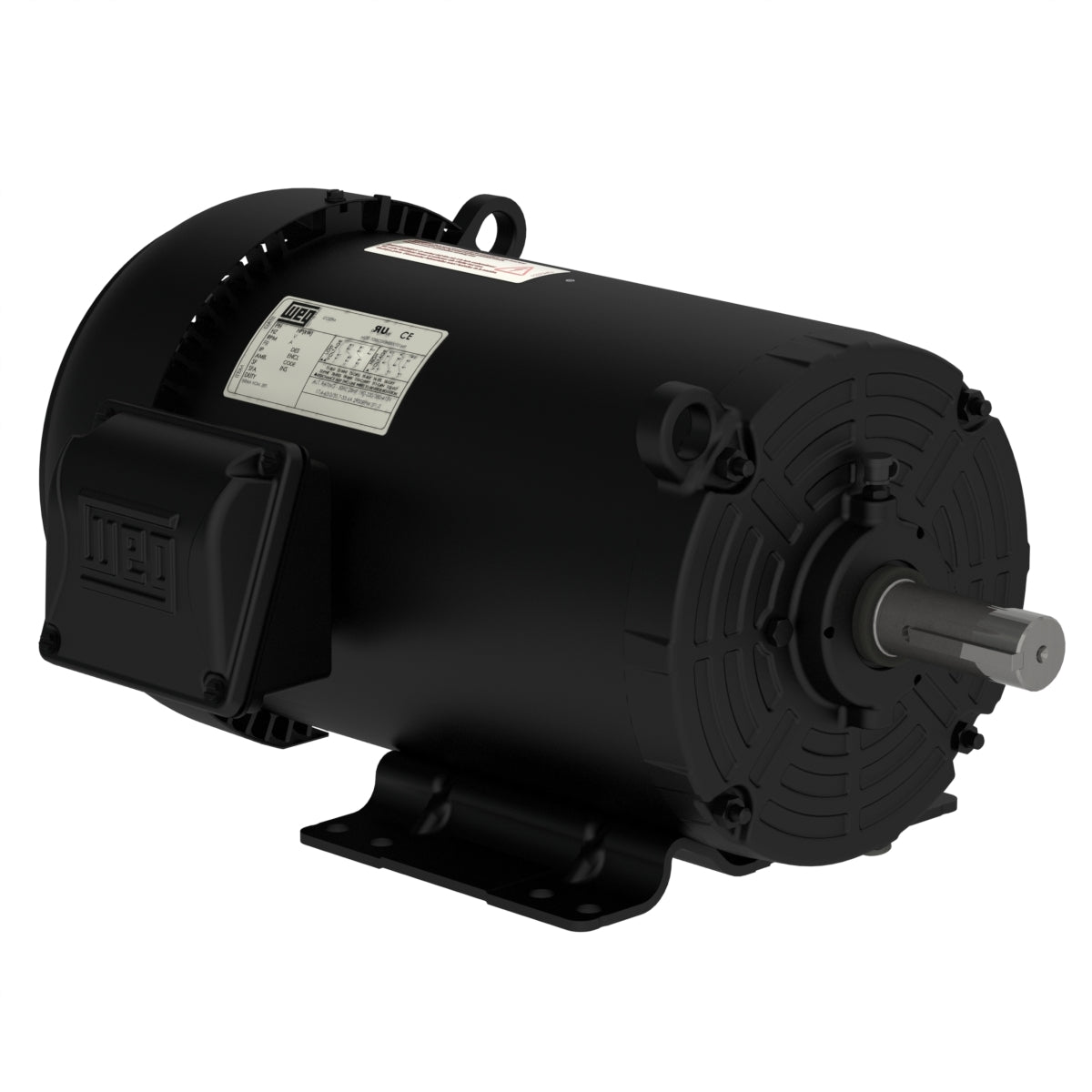

Weg Electric 00212ET3E184T-SG, 2 Hp, 1200 Rpm, 182/4T FR, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel NEMA.

00212ET3E184T-SG, 2 Hp, 1200 Rpm, 182/4T FR, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel NEMA.

Engineering Data

W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 6.00/3.00 A
L. R. Amperes 45.0/22.5 A
LRC 7.5x(Code K)
No load current 3.74/1.87 A
Rated torque 8.98 ft.lb
Locked rotor torque 260 %
Breakdown torque 370 %
Locked rotor time 79s (cold) 44s (hot)
Moment of inertia (J) 0.3424 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
