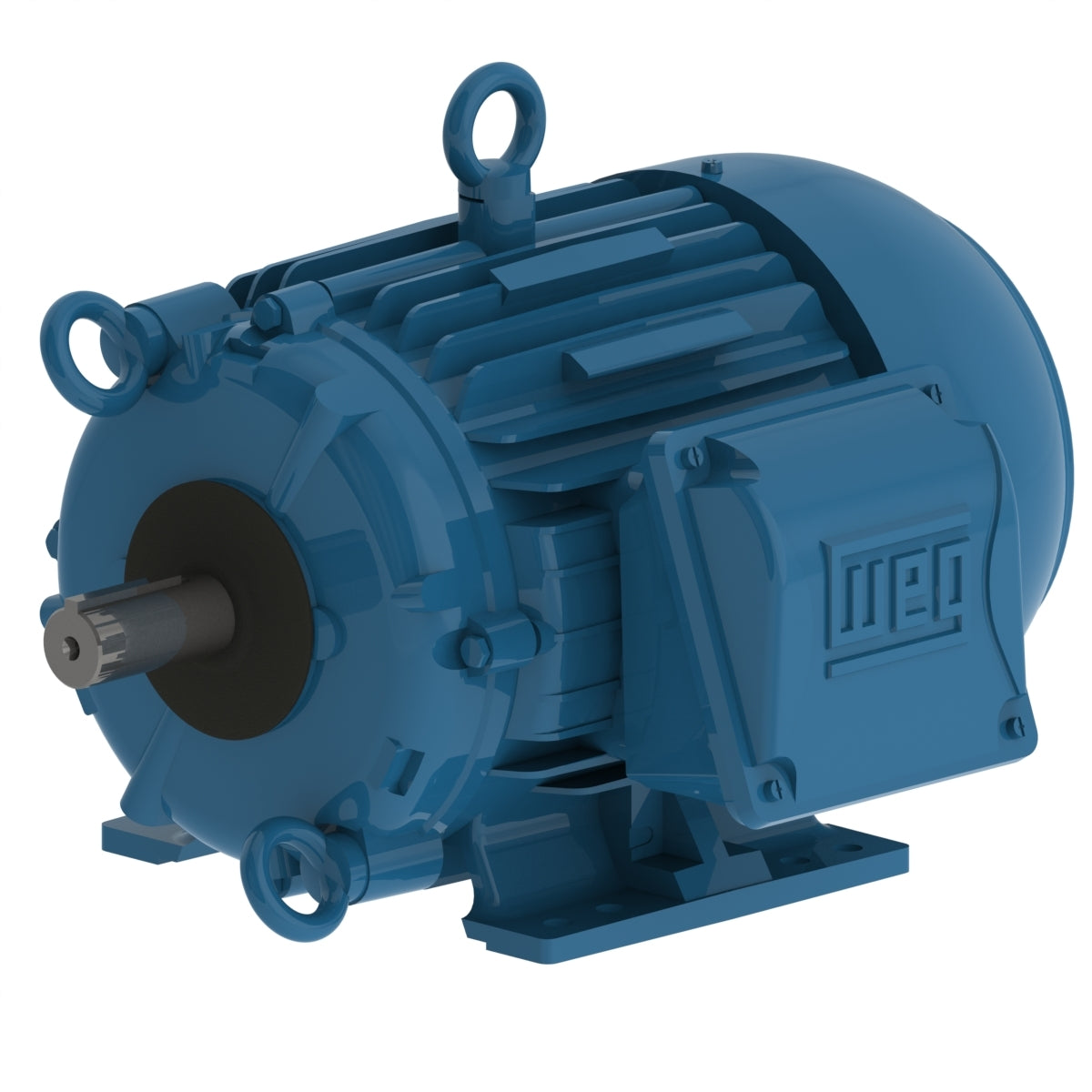

Weg Electric 00212ET3PCT184T-W22, 2 Hp, 1200 Rpm, 182/4T FR, 200 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower NEMA.

00212ET3PCT184T-W22, 2 Hp, 1200 Rpm, 182/4T FR, 200 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower NEMA.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 200 V
Rated current 7.41 A
L. R. Amperes 55.5 A
LRC 7.5x(Code L)
No load current 4.37 A
Rated torque 8.98 ft.lb
Locked rotor torque 300 %
Breakdown torque 350 %
Locked rotor time 55s (cold) 31s (hot)
Moment of inertia (J) 0.6210 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
