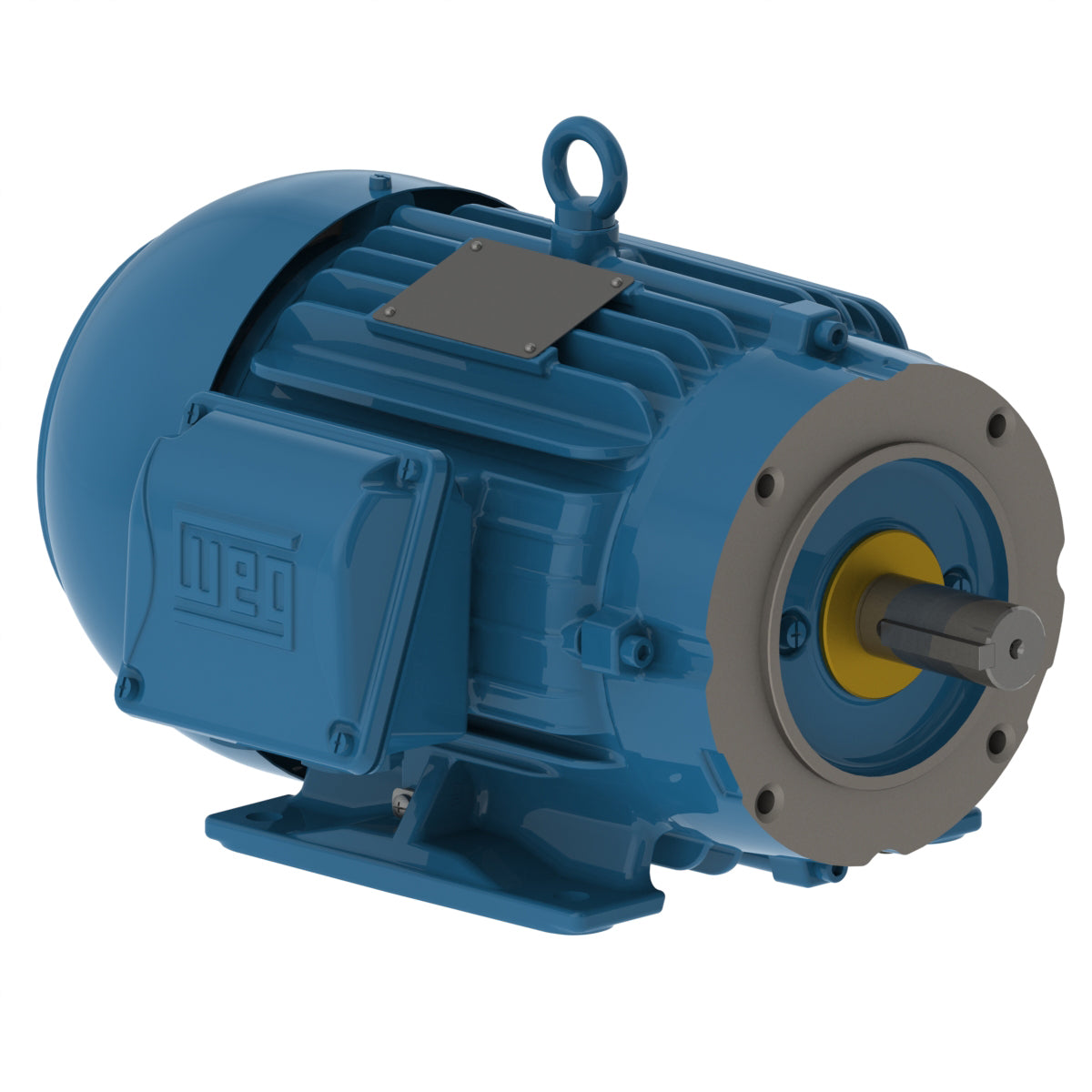

Weg Electric 00212ST3QIE184TC-W22, 2 Hp, 1200 Rpm, 182/4TC FR, 460 Vac, 3 PH, TEFC, Foot-mounted, NEMA Premium Efficiency.

00212ST3QIE184TC-W22, 2 Hp, 1200 Rpm, 182/4TC FR, 460 Vac, 3 PH, TEFC, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

The W22 IEEE 841 motors were especially designed to operate in petrochemical and chemical industries. The motor has cast iron frame, flexible mounting, solid and whole feet, low noise levels, anticorrosive internal coating and high efficiency.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4TC
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 460 V
Rated current 3.22 A
L. R. Amperes 24.2 A
LRC 7.5x(Code L)
No load current 1.90 A
Rated torque 8.98 ft.lb
Locked rotor torque 300 %
Breakdown torque 350 %
Locked rotor time 55s (cold) 31s (hot)
Moment of inertia (J) 0.6210 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
