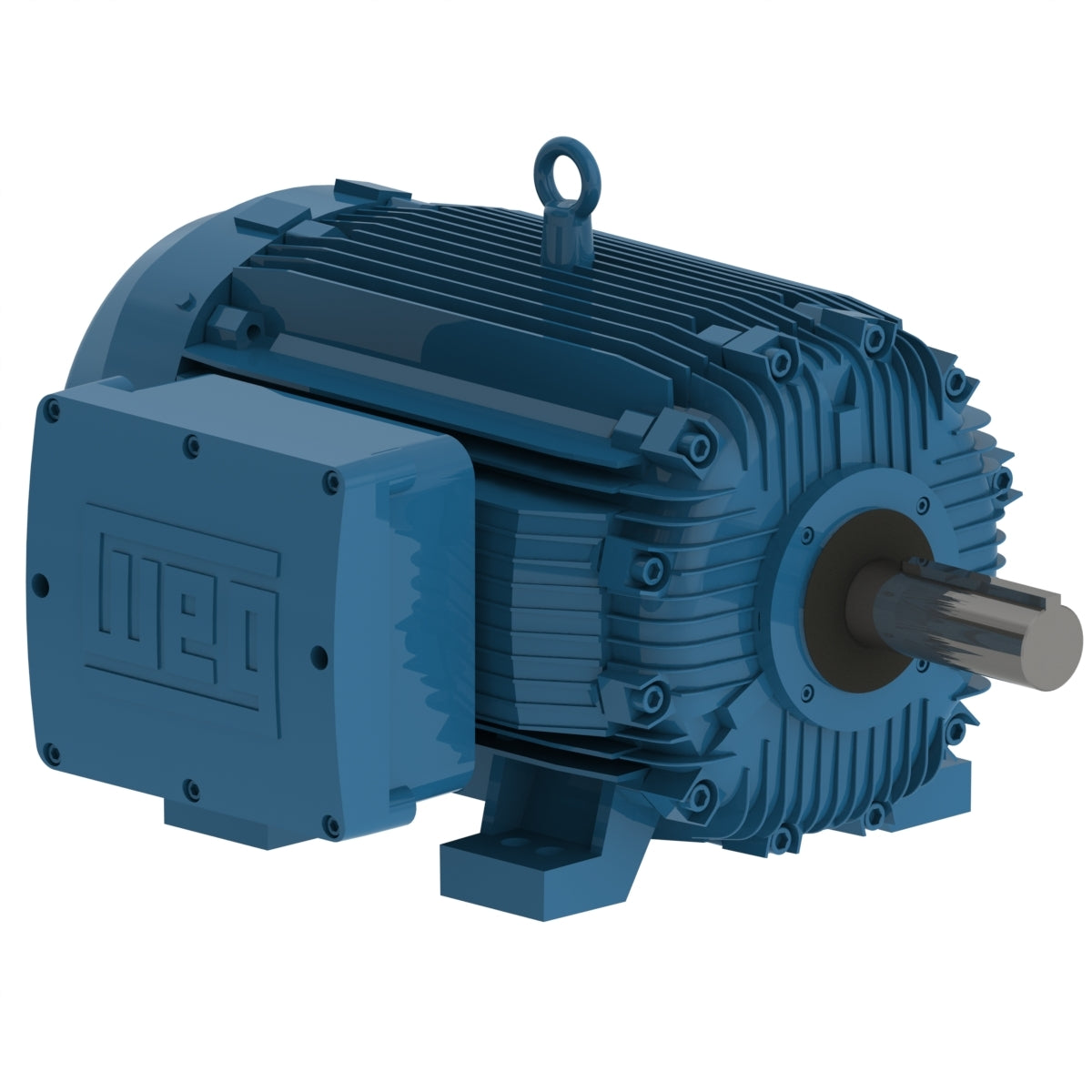

Weg Electric 00212XT3H184T, 2 Hp, 182/4T Frame, 1200 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W21 Explosion-proof Motor.

00212XT3H184T, 2 Hp, 182/4T Frame, 1200 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W21 Explosion-proof Motor.

Engineering Data

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1165 rpm
Slip 2.92 %
Rated voltage 575 V
Rated current 2.50 A
L. R. Amperes 18.8 A
LRC 7.5x(Code L)
No load current 1.60 A
Rated torque 9.02 ft.lb
Locked rotor torque 300 %
Breakdown torque 330 %
Locked rotor time 82s (cold) 46s (hot)
Moment of inertia (J) 0.5323 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
