Industrial Motors

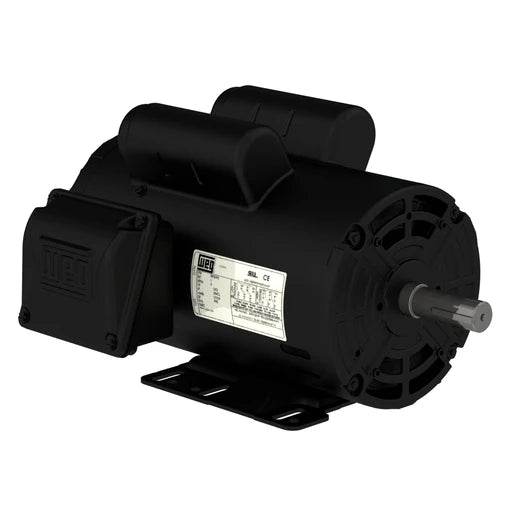

Weg Electric 00218AS1BPF145T-S, 2 Hp, 1800 Rpm, 143/5T FR, 115/208-230 Vac, 1 PH, TEAO, Foot-Mounted, 15656712

Weg Electric 00218AS1BPF145T-S, 2 Hp, 1800 Rpm, 143/5T FR, 115/208-230 Vac, 1 PH, TEAO, Foot-Mounted, 15656712

$487.72
$487.72
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00218AS1BPF145T-S, 2 Hp, 1800 Rpm, 143/5T FR, 115/208-230 Vac, 1 PH, TEAO, Foot-Mounted, 15656712

Specifications

Manufacturer Part Number 00218AS1BPF145T-S
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 2HP 4P 143/5T WCF2 ROLLED STEEL IH
Type Farm Duty
Horsepower 2 hp
Kilowatts 1.5 kW
Speed 1,800 RPM
Number of Poles 4
Phase 1
Frequency 60 Hz
NEMA Frame 143/5T
AC Voltage 115 VAC, 208-230 VAC
Nominal Voltage 120 VAC, 208 VAC, 240 VAC
Enclosure Totally Enclosed Air Over
Mounting Foot Mount
Current Rating 10 A
Service Factor 1.25
Inverter Duty No
Motor Type Foot Mount
Composition Rolled Steel
Bearing Type Double Shielded
Shaft Diameter 0.88 "
Overload Protection Automatic
Length 12.95 "
Approvals cCSAus
Net Weight 57.889 lbs
Gross Weight 57.889 lbs
View full details

Attachments
