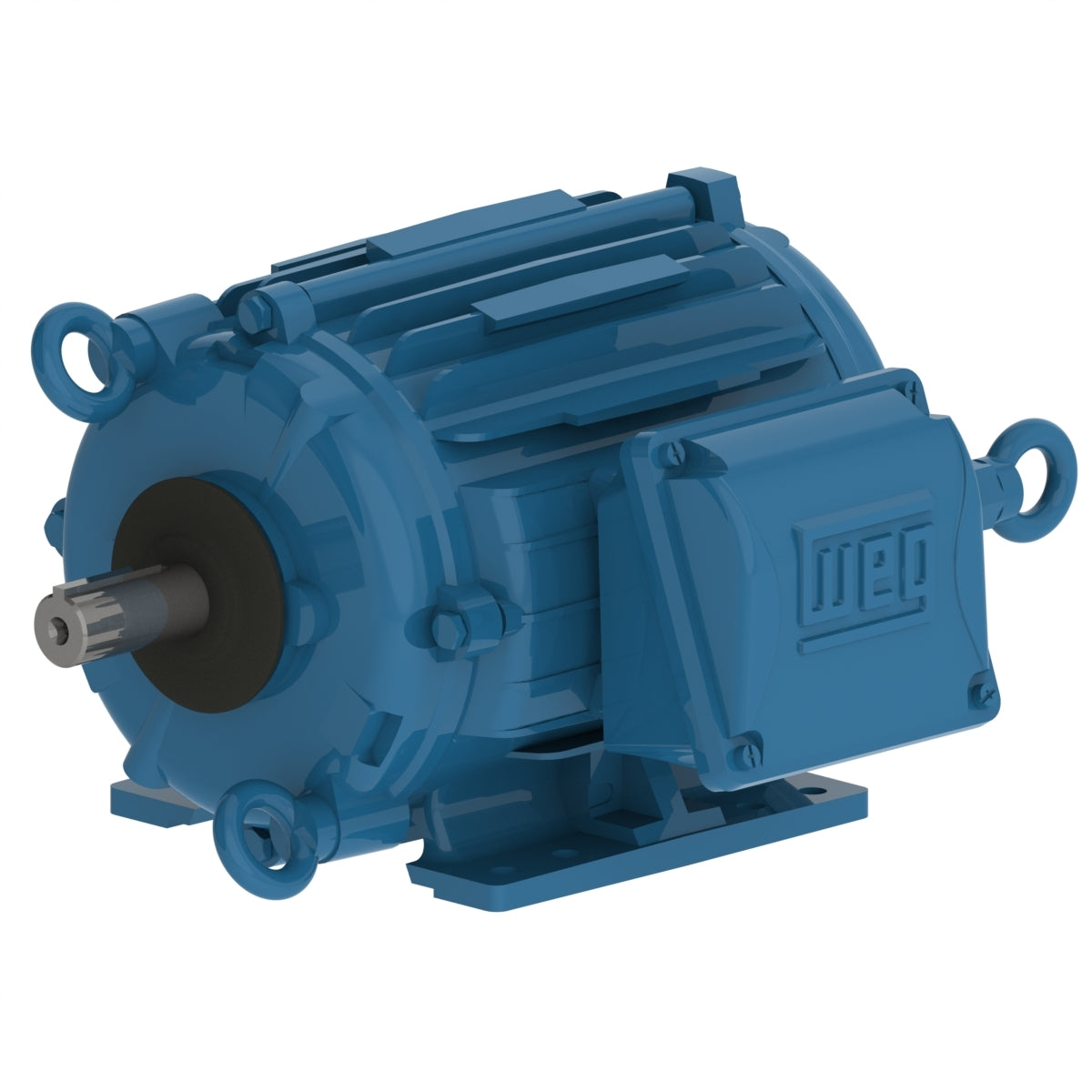

Weg Electric 00218AT3ECT145T-W22, 2 Hp, 1800 Rpm, 143/5T FR, 208-230/460//380 Vac, TEAO, 3 PH, Foot-mounted, Cooling Tower.

00218AT3ECT145T-W22, 2 Hp, 1800 Rpm, 143/5T FR, 208-230/460//380 Vac, TEAO, 3 PH, Foot-mounted, Cooling Tower.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC410 - TEAO

Frame 143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 208-230/460 V
Rated current 5.85-5.52/2.76 A
L. R. Amperes 48.6-45.8/22.9 A
LRC 8.3x(Code L)
No load current 2.81-3.26/1.63 A
Rated torque 6.00 ft.lb
Locked rotor torque 270 %
Breakdown torque 320 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
