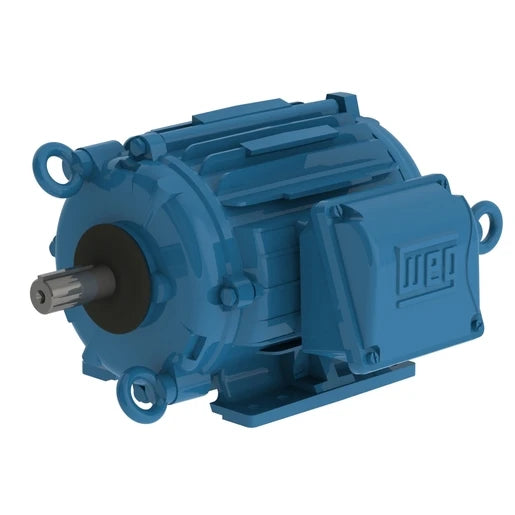

Weg Electric 00218AT3HCT145T-W22, 2 Hp, 1800 Rpm, 143/5T Frame, 575 Vac, TEAO, 3 PH, Foot-Mounted, W22 Cooling Tower NEMA Premium Efficiency, 14408138

Weg Electric 00218AT3HCT145T-W22, 2 Hp, 1800 Rpm, 143/5T Frame, 575 Vac, TEAO, 3 PH, Foot-Mounted, W22 Cooling Tower NEMA Premium Efficiency, 14408138

$689.75
$689.75
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00218AT3HCT145T-W22, 2 Hp, 1800 Rpm, 143/5T Frame, 575 Vac, TEAO, 3 PH, Foot-Mounted, W22 Cooling Tower NEMA Premium Efficiency, 14408138

SPECIFICATIONS

Manufacturer Part Number 00218AT3HCT145T-W22
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 2HP 4P 143/5T WFF2
Type Cooling Tower Duty
Horsepower 2 hp
Kilowatts 1.5 kW
Speed 1,800 RPM
Number of Poles 4
Phase 3
Frequency 60 Hz
NEMA Frame 143/5T
AC Voltage 575 VAC
Enclosure Totally Enclosed Air Over
Mounting Foot Mount
Current Rating 2.29 A
Service Factor 1.25
Inverter Duty No
Motor Type Foot Mount
Composition Cast Iron
Shaft Diameter 0.88 "
Overload Protection None
Length 11.57 "
Approvals cCSAus, cULus
Net Weight 54.641 lbs
Gross Weight 54.641 lbs
