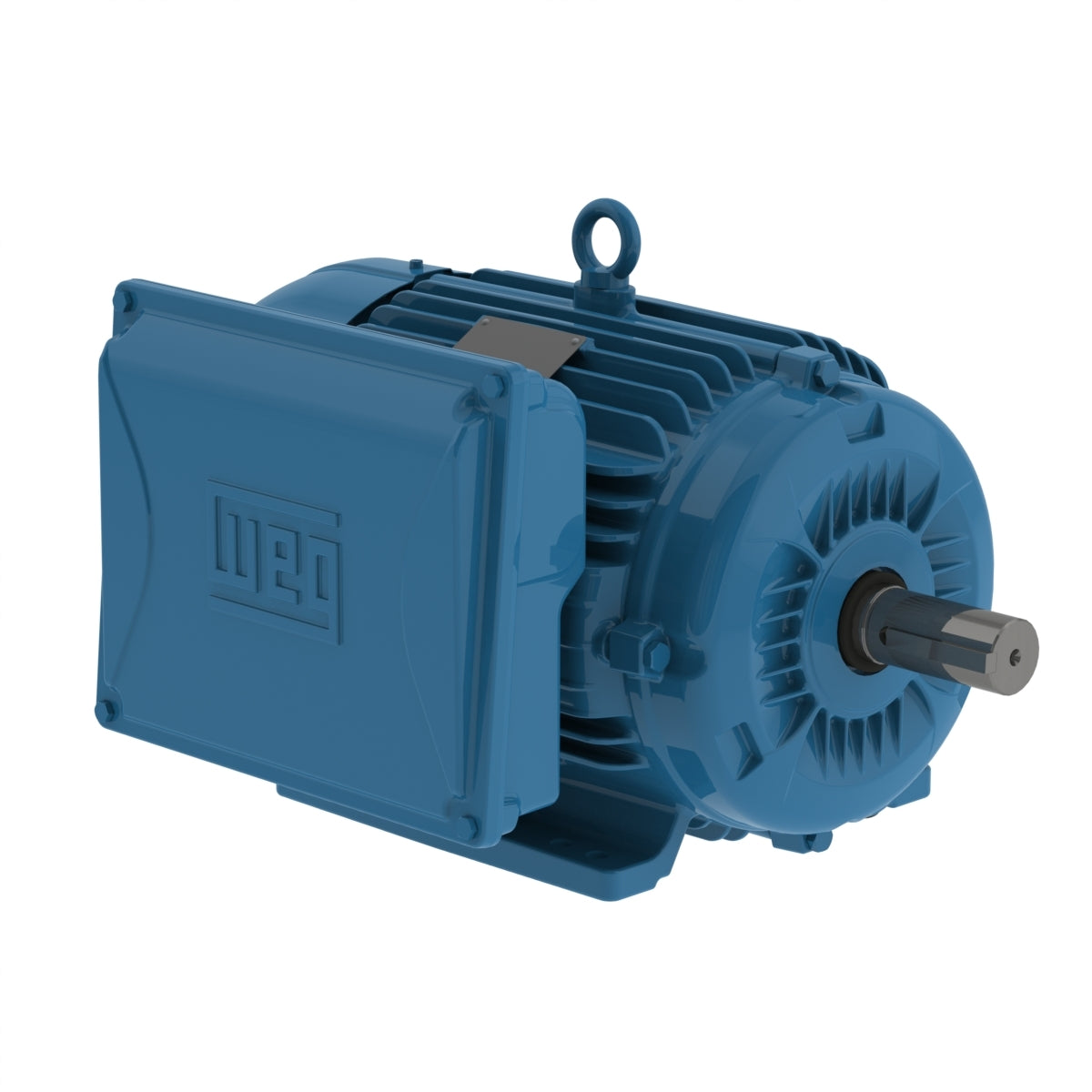

Weg Electric 00218ES1E145JP-W22, 2 Hp, 1800 Rpm, 143/5JP FR, 208-230/460 Vac, TEFC, 1 PH, Foot-mounted.

00218ES1E145JP-W22, 2 Hp, 1800 Rpm, 143/5JP FR, 208-230/460 Vac, TEFC, 1 PH, Foot-mounted.

Engineering Data

High starting torque.
For applications on commercial and industrial pumps (JM/JP - mechanical seal/gasket).
Suitable for domestic and rural power supply conditions.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 143/5JP
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1745 rpm
Slip 3.06 %
Rated voltage 208-230/460 V
Rated current 9.50-9.12/4.56 A
L. R. Amperes 70.3-67.5/33.7 A
LRC 7.4x(Code J)
No load current 3.62-4.20/2.10 A
Rated torque 6.02 ft.lb
Locked rotor torque 270 %
Breakdown torque 240 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.1497 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
