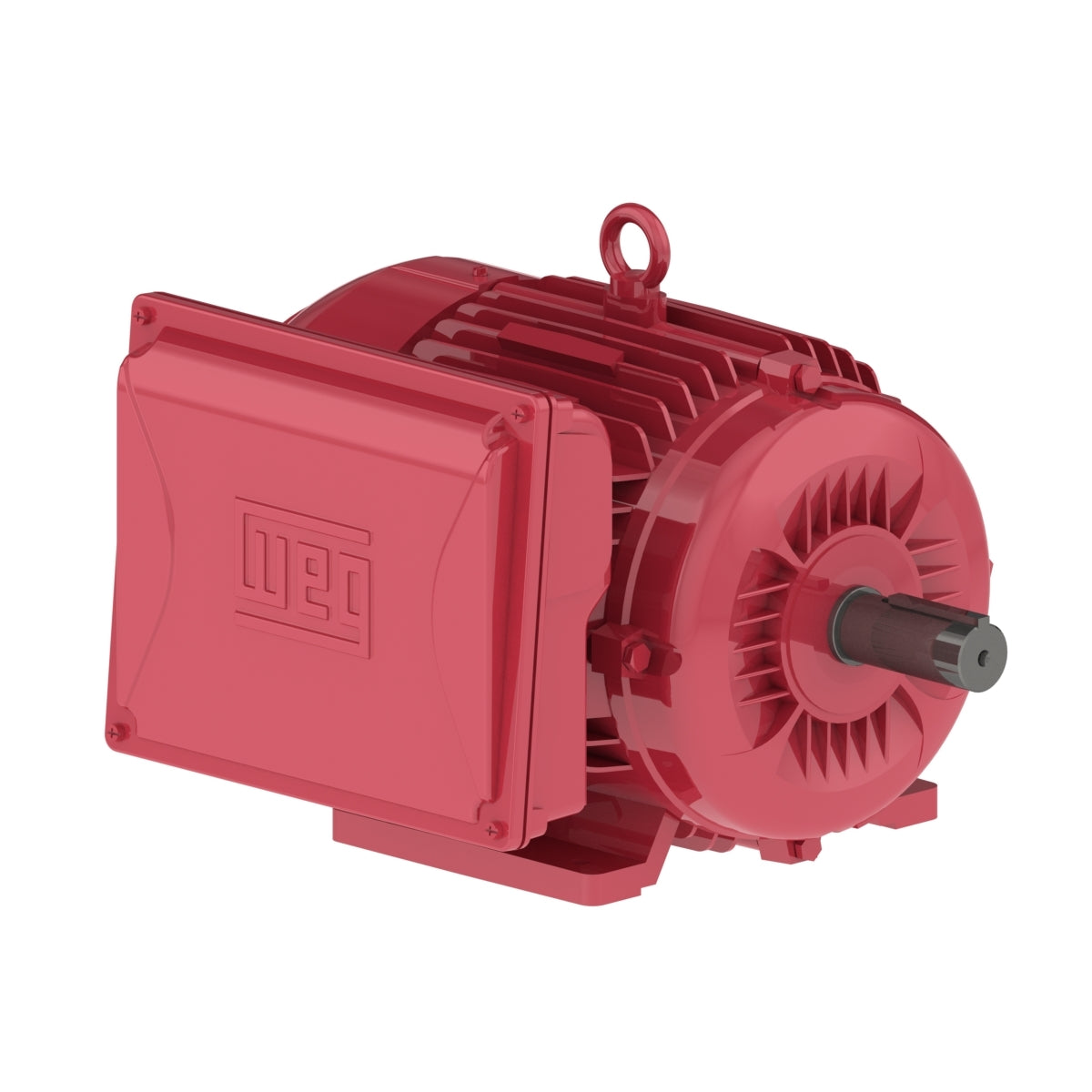

Weg Electric 00218ES1RFD182T-W22, 2 Hp, 1800 Rpm, 182/5T Frame, 115/230 Vac, TEFC, 3 PH, Foot-mounted, W22.

00218ES1RFD182T-W22, 2 Hp, 1800 Rpm, 182/5T Frame, 115/230 Vac, TEFC, 3 PH, Foot-mounted, W22.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/230 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 115/230 V
Rated current 16.8/8.40 A
L. R. Amperes 124/62.2 A
LRC 7.4x(Code J)
No load current 4.50/2.25 A
Rated torque 6.04 ft.lb
Locked rotor torque 290 %
Breakdown torque 229 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.2957 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
