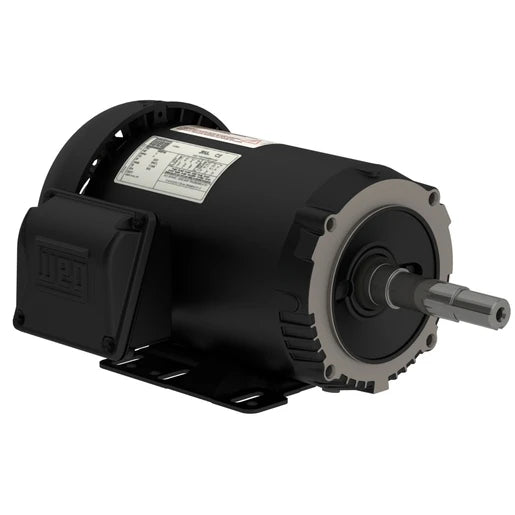

Weg Electric 00218ET3E145JM-S, 2 Hp, 1800 Rpm, 143/5JM Frame, 230/460//190-220/380-415 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel JM Pump, 14808489

Weg Electric 00218ET3E145JM-S, 2 Hp, 1800 Rpm, 143/5JM Frame, 230/460//190-220/380-415 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel JM Pump, 14808489

$629.23
$629.23
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00218ET3E145JM-S, 2 Hp, 1800 Rpm, 143/5JM Frame, 230/460//190-220/380-415 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel JM Pump, 14808489

SPECIFICATIONS

Frame 143/5JM
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1745 rpm
Slip 3.06 %
Rated voltage 230/460 V
Rated current 5.44/2.72 A
L. R. Amperes 44.6/22.3 A
LRC 8.2x(Code K)
No load current 2.80/1.40 A
Rated torque 6.02 ft.lb
Locked rotor torque 270 %
Breakdown torque 300 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.1296 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 45.5 lb
