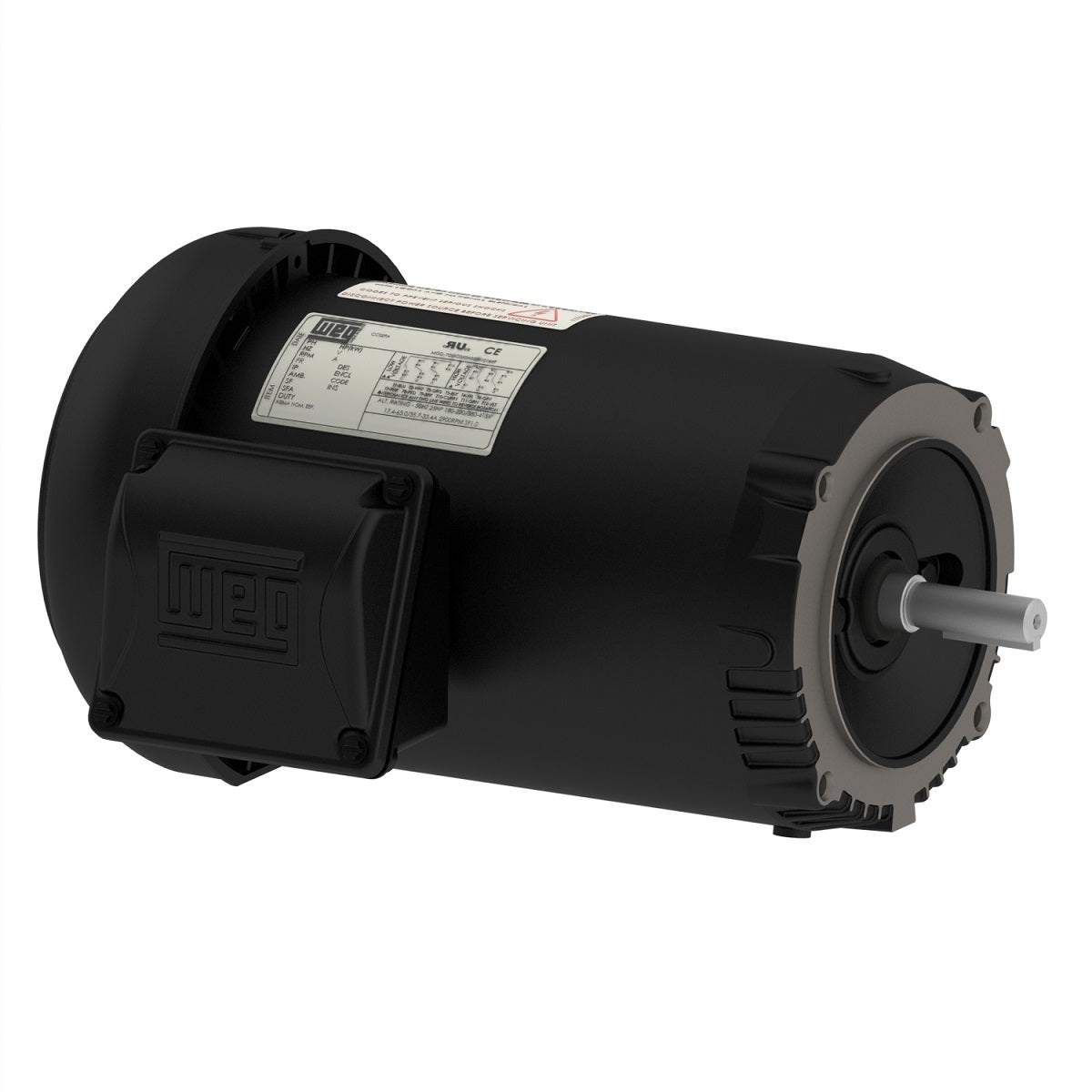

Weg Electric 00218ET3ESB145TCZ1-S, 2 Hp, 1800 Rpm, 143/5TCZ FR, 208-230/460//190-220/380-415 Vac, 3 PH, TEFC, Footless, Rolled Steel NEMA Premium Efficiency.

00218ET3ESB145TCZ1-S, 2 Hp, 1800 Rpm, 143/5TCZ FR, 208-230/460//190-220/380-415 Vac, 3 PH, TEFC, Footless, Rolled Steel NEMA Premium Efficiency.

Engineering Data

W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 2 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 143/5TCZ
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1745 rpm
Slip 3.06 %
Rated voltage 208-230/460 V
Rated current 6.02-5.44/2.72 A
L. R. Amperes 49.4-44.6/22.3 A
LRC 8.2x(Code K)
No load current 2.41-2.80/1.40 A
Rated torque 6.02 ft.lb
Locked rotor torque 270 %
Breakdown torque 300 %
Locked rotor time 36s (cold) 20s (hot)
Design B
Insulation Class H
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +65°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
