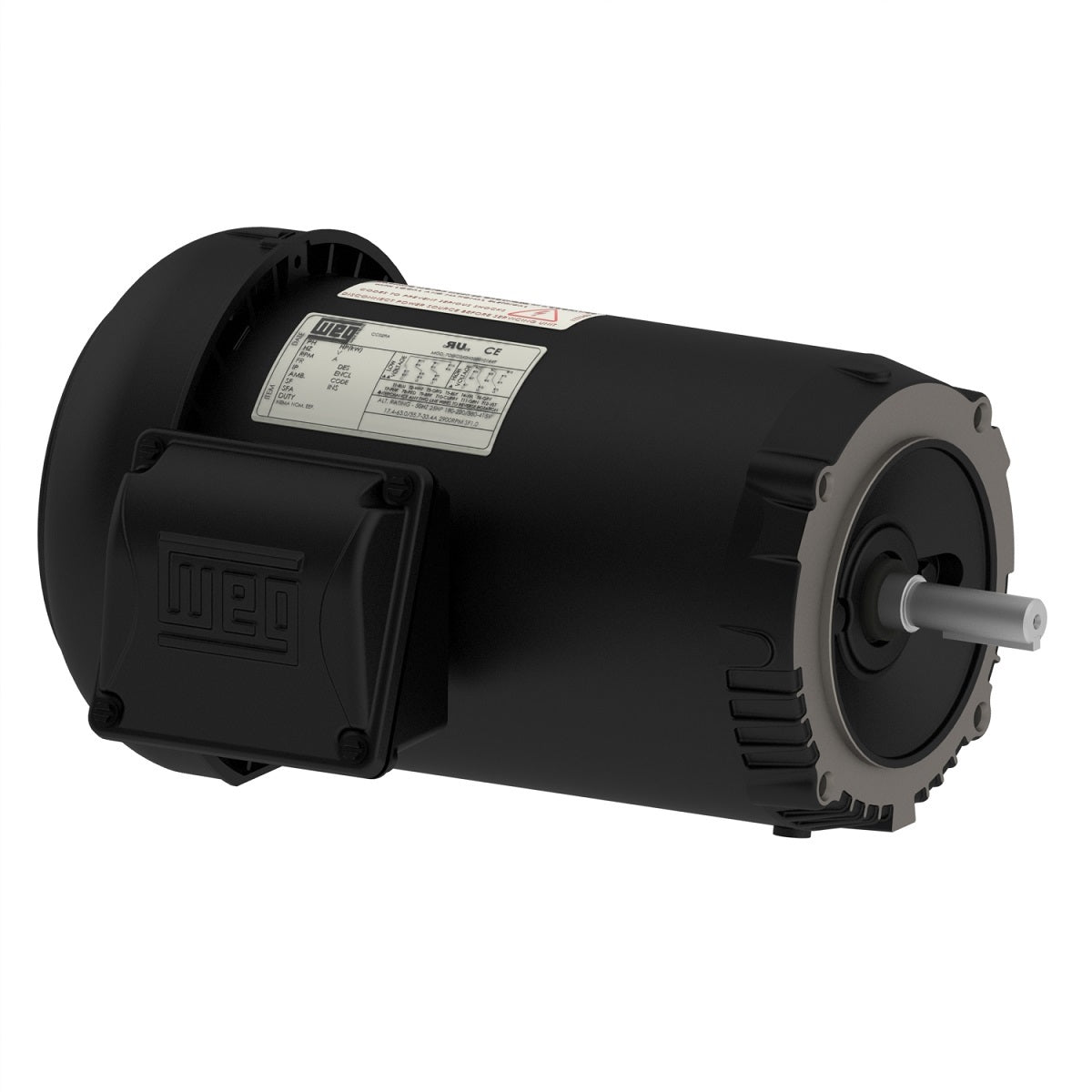

Weg Electric 00218ET3ESB145TCZ2-S, 2 Hp, 1800 Rpm, 143/5TCZ Frame, 230/460//380 Vac, TEFC, 3 PH, Footless, Rolled Steel NEMA Premium Efficiency.

00218ET3ESB145TCZ2-S, 2 Hp, 1800 Rpm, 143/5TCZ Frame, 230/460//380 Vac, TEFC, 3 PH, Footless, Rolled Steel NEMA Premium Efficiency.

Engineering Data

W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 2 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 143/5TCZ
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1415 rpm
Slip 5.67 %
Rated voltage 190/380 V
Rated current 6.50/3.25 A
L. R. Amperes 39.0/19.5 A
LRC 6.0x(Code H)
No load current 2.75/1.37 A
Rated torque 7.42 ft.lb
Locked rotor torque 210 %
Breakdown torque 240 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1305 sq.ft.lb
Design B
Insulation Class H
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +65°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
