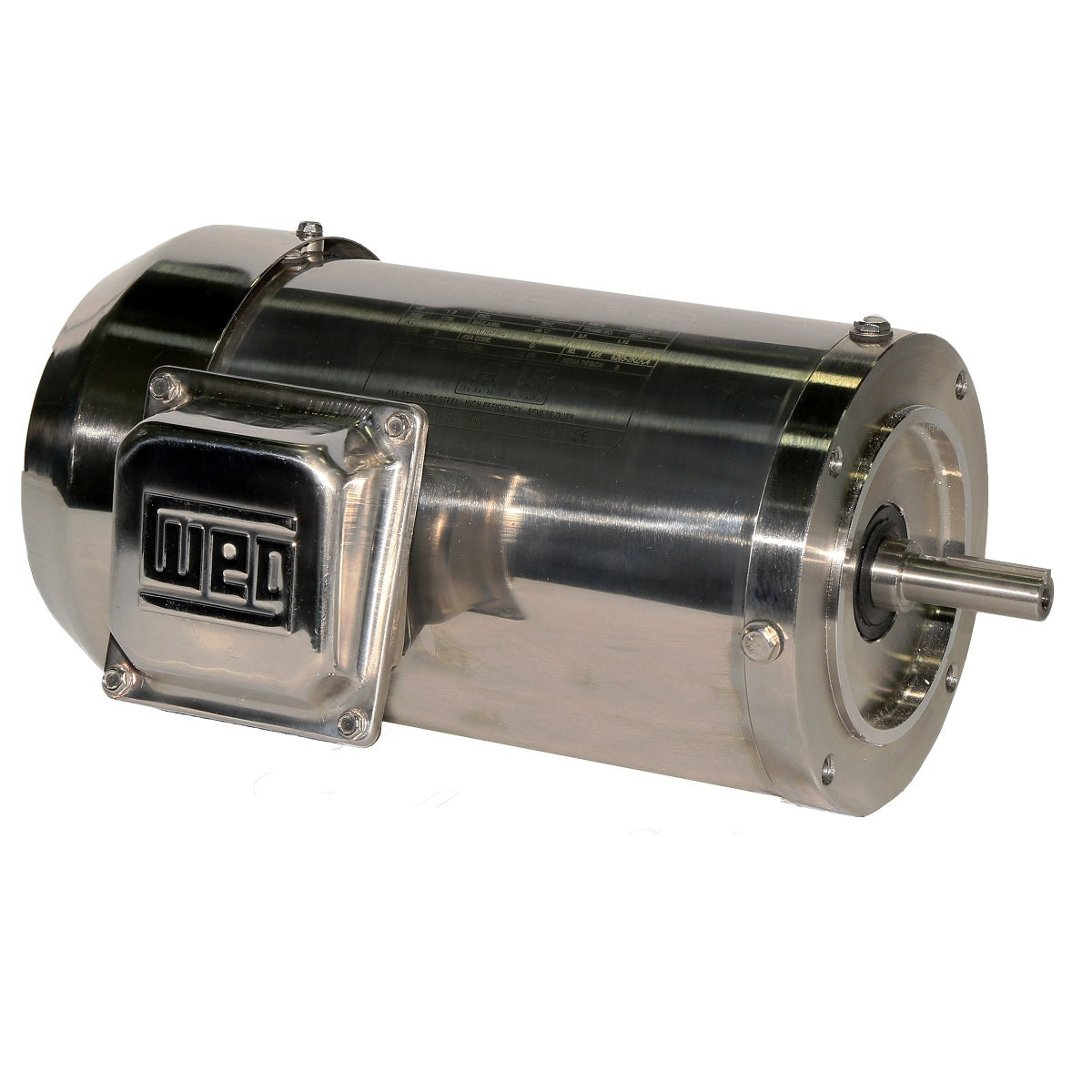

Weg Electric 00218ET3ESS145TCFL, 2 Hp, 1800 Rpm, 145TC FR, 230/460 Vac, TEFC, Footless, Stainless Steel.

00218ET3ESS145TCFL, 2 Hp, 1800 Rpm, 145TC FR, 230/460 Vac, TEFC, Footless, Stainless Steel.

Engineering Data

For use in food processing, pharmaceutical and other environments requiring extreme cleanliness and frequent washdowns.

Product features

Standard NEMA MG-1
Frame 145TC
Frequency 60 Hz
Number of poles 4
Degree of Protection IP56
Synchronous speed 1800 rpm
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure TEFC

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Output rating 2 HP
Enclosure TEFC
Frequency 60 Hz
Flange C
Frame Material Stainless steel
Mounting Footless
Efficiency NEMA Premium Efficiency
Motor Application Shark
Terminal box¹ Left position
Frame 145TC
Voltage 230/460 V
Synchronous speed 1800 rpm
Number of Poles 04
