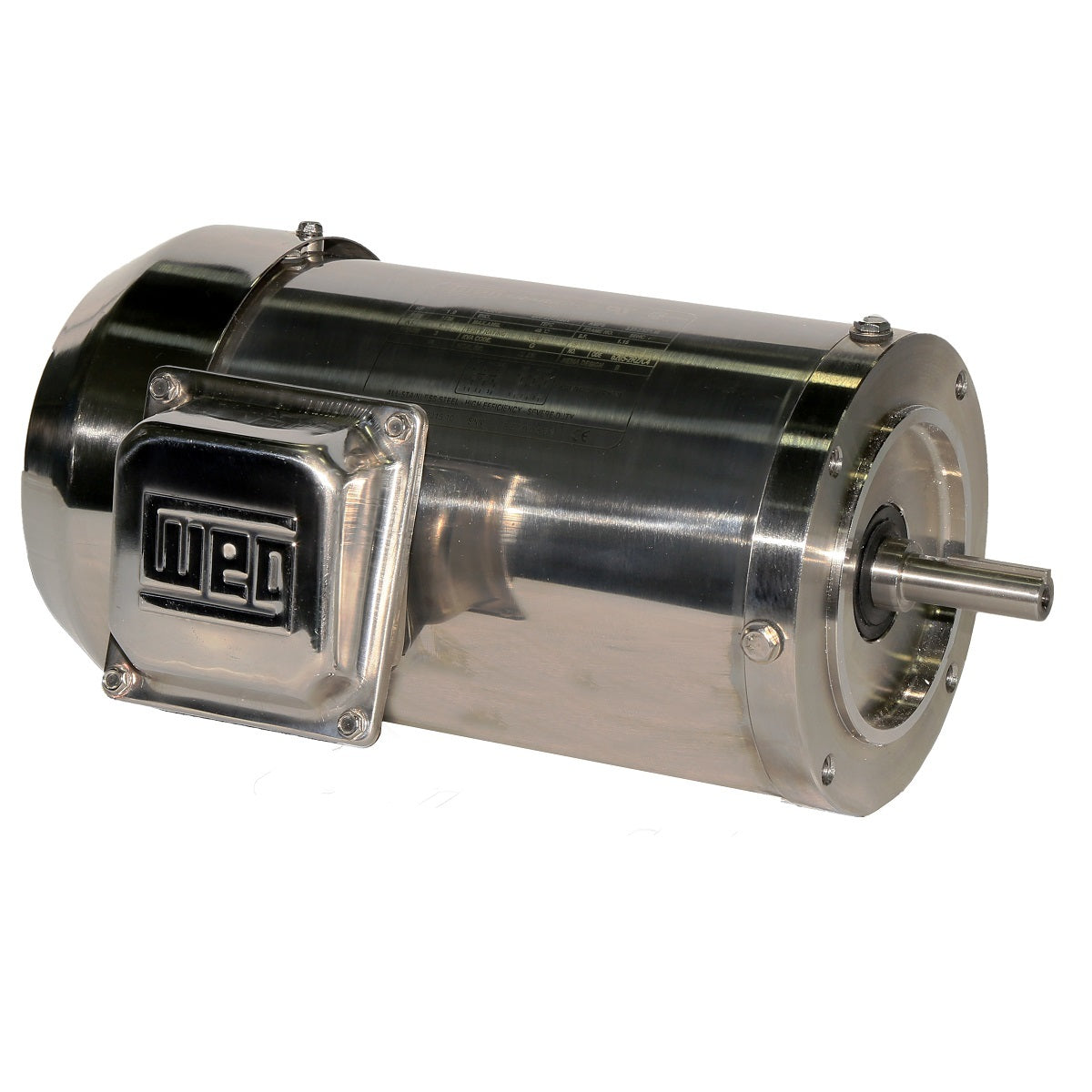

Weg Electric 00218ET3ESS56C, 2 Hp, 1800 Rpm, 56C FR, 230/460 Vac, TEFC, Foot-mounted, Stainless Steel.

00218ET3ESS56C, 2 Hp, 1800 Rpm, 56C FR, 230/460 Vac, TEFC, Foot-mounted, Stainless Steel.

Engineering Data

For use in food processing, pharmaceutical and other environments requiring extreme cleanliness and frequent washdowns.

Product features
Standard NEMA MG-1
Frame 56C
Frequency 60 Hz
Number of poles 4
Degree of Protection IP56
Synchronous speed 1800 rpm
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure TEFC

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Output rating 2 HP
Enclosure TEFC
Frequency 60 Hz
Flange C
Frame Material Stainless steel
Mounting Foot-mounted
Efficiency NEMA Premium Efficiency
Motor Application Shark
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 1800 rpm
Number of Poles 4
