Industrial Motors

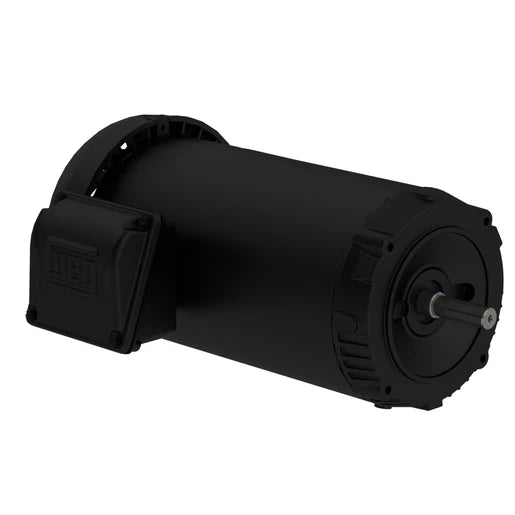

Weg Electric 00218ET3H56CFL-S, 2 Hp, 1800 Rpm, 56C, 575 Vac, 3 PH, TEFC, Footless, 15459818

Weg Electric 00218ET3H56CFL-S, 2 Hp, 1800 Rpm, 56C, 575 Vac, 3 PH, TEFC, Footless, 15459818

$450.34
$450.34
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00218ET3H56CFL-S, 2 Hp, 1800 Rpm, 56C, 575 Vac, 3 PH, TEFC, Footless, 15459818

Specifications

Manufacturer Part Number 00218ET3H56CFL-S
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 2HP 4P 56C WCF2
Type General Purpose
Horsepower 2 hp
Kilowatts 1.5 kW
Speed 1,800 RPM
Number of Poles 4
Phase 3
Frequency 60 Hz
NEMA Frame 56C
AC Voltage 575 VAC
Enclosure Totally Enclosed Fan Cooled
Mounting Foot Mount
Current Rating 2.18 A
Service Factor 1.15
Inverter Duty No
Motor Type Footless
Composition Rolled Steel
Bearing Type Ball
Shaft Diameter 0.63 "
Overload Protection None
Length 11.6 "
Approvals cCSAus
Net Weight 45.544 lbs
Gross Weight 45.544 lbs
