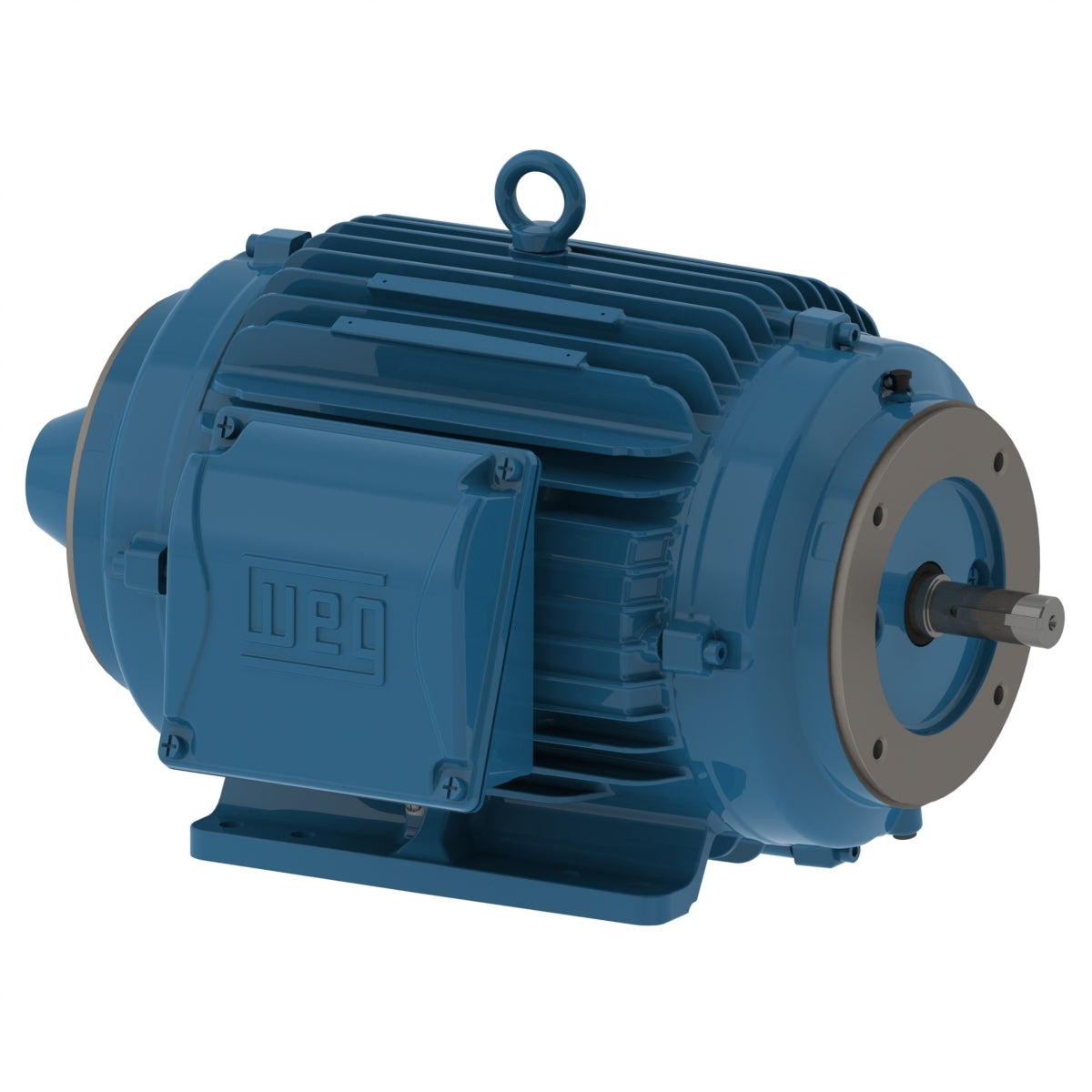

Weg Electric 00218NT3FVD145TC-W22, 2 Hp, 143/TC Frame, 1800 RPM, 230/460 Vac, TENV, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

00218NT3FVD145TC-W22, 2 Hp, 143/TC Frame, 1800 RPM, 230/460 Vac, TENV, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

Engineering Data

Motor designed specifically for Inverter Operation, allowing its use in applications where 1000:1 constant torque turndown ratio is required.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TENV

Frame 143/5TC
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 5.31/2.65 A
L. R. Amperes 43.0/21.5 A
LRC 8.1x(Code K)
No load current 3.10/1.55 A
Rated torque 5.98 ft.lb
Locked rotor torque 250 %
Breakdown torque 330 %
Locked rotor time 19s (cold) 11s (hot)
Design B
Insulation Class H
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method VFD
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TENV
Mounting F-1
Rotation¹ Both (CW and CCW)
