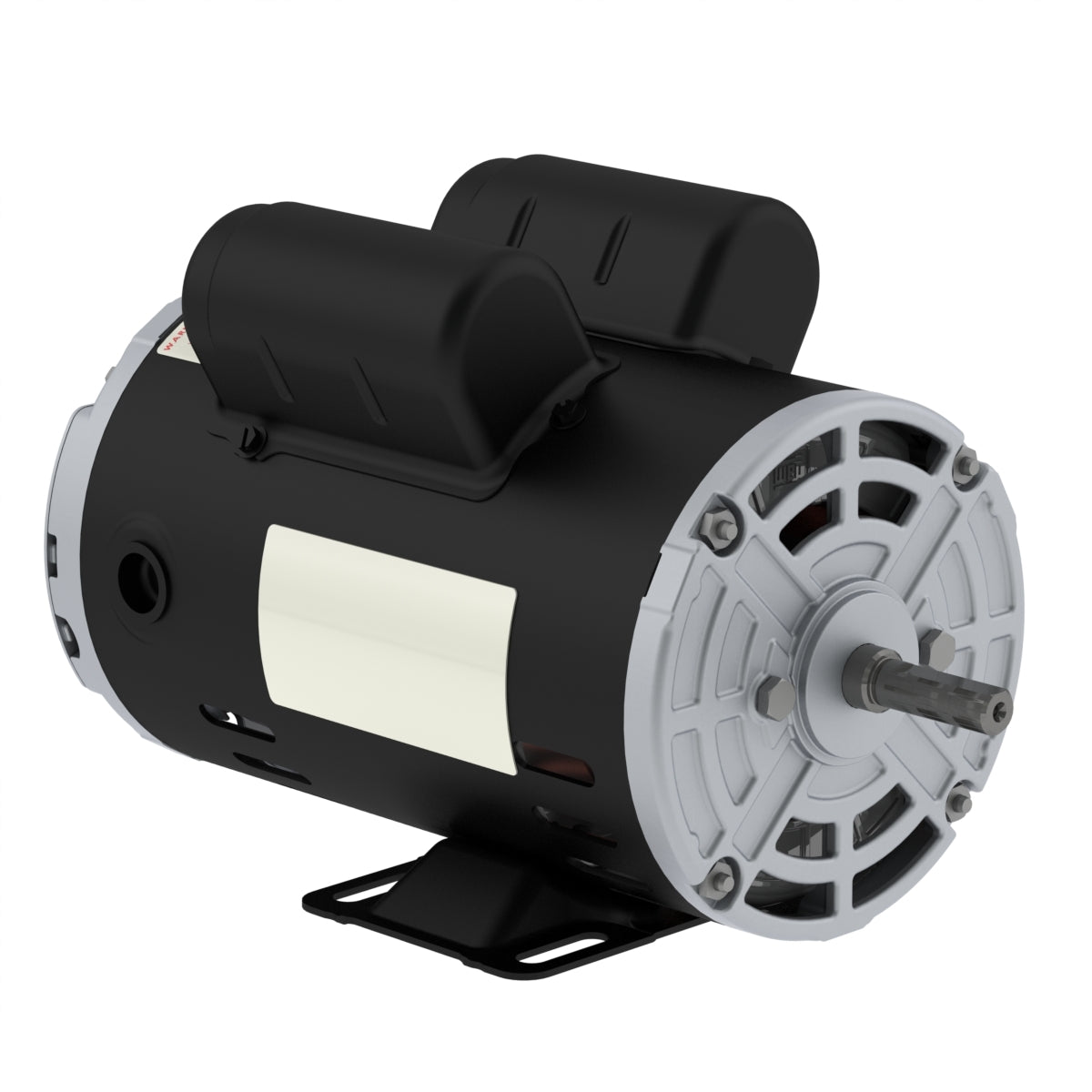

Weg Electric 00218OS1BFB56-S, 2 Hp, 56C Frame, 1800 RPM, 115/208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel.

00218OS1BFB56-S, 2 Hp, 56C Frame, 1800 RPM, 115/208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for the severest applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56H
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 115/208-230 V
Rated current 21.2/10.9-10.6 A
L. R. Amperes 144/74.1-72.1 A
LRC 6.8x(Code K)
No load current 12.3/5.06-6.18 A
Rated torque 6.04 ft.lb
Locked rotor torque 250 %
Breakdown torque 260 %
Locked rotor time 10s (cold) 6s (hot)
Design L
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
