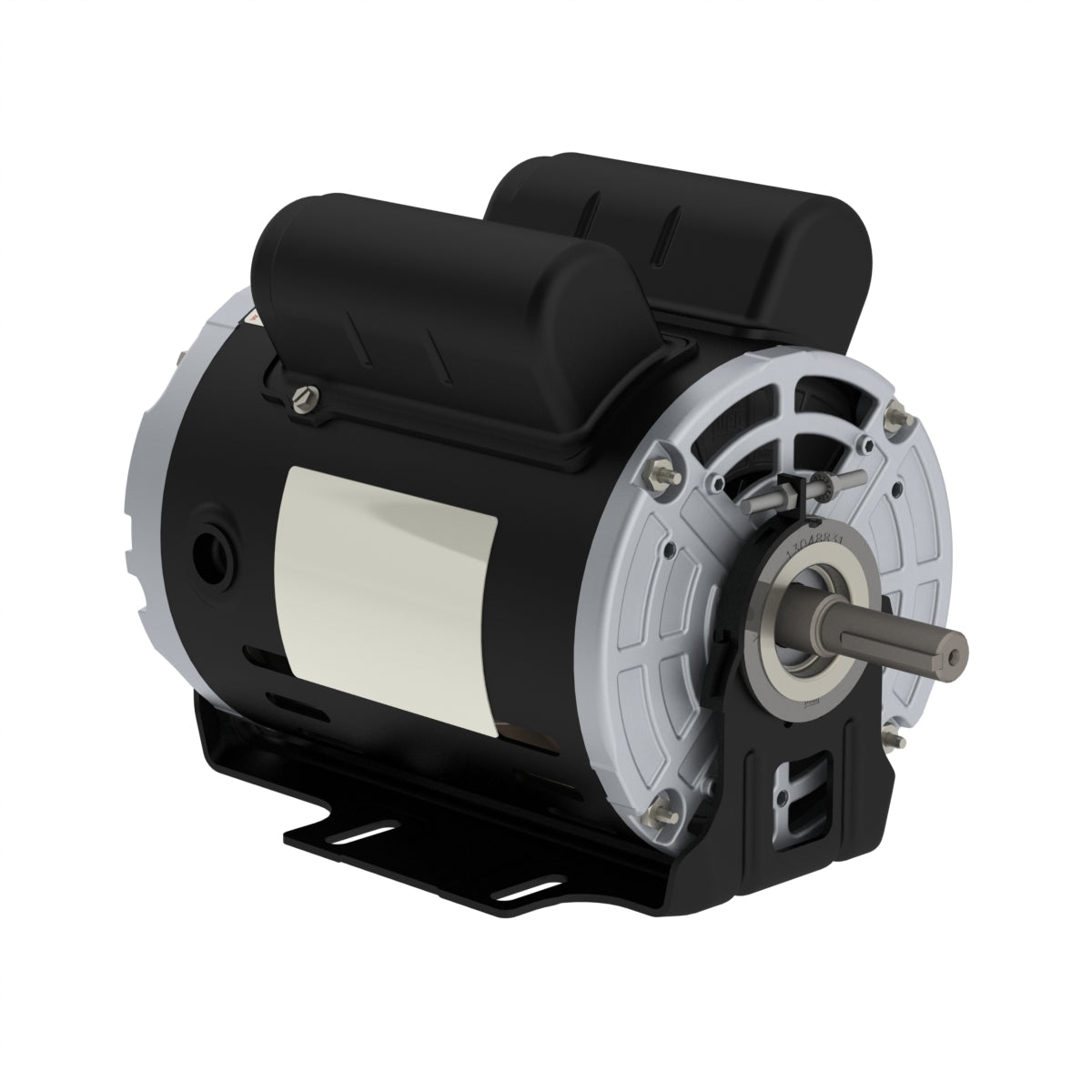

Weg Electric 00218OT1BRBO56H-S, 2 Hp, 1800 Rpm, 56H FR, 115/208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel.

00218OT1BRBO56H-S, 2 Hp, 1800 Rpm, 56H FR, 115/208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel.

Engineering Data

The W01 (Rolled Steel) motor is the perfect option for applications that require robustness, low weight and high performance in a single product. It has good thermal performance, easy installation and maintenance and it is able to operate on an elastic base. With steel plate frame and aluminum flange, these versatile single-phase motors provide torque and durability for several applications.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56H
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1730 rpm
Slip 3.89 %
Rated voltage 115/208-230 V
Rated current 17.7/9.50-8.87 A
L. R. Amperes 115/61.7-57.7 A
LRC 6.5x(Code H)
No load current 6.20/2.67-3.10 A
Rated torque 6.07 ft.lb
Locked rotor torque 290 %
Breakdown torque 225 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.1614 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
