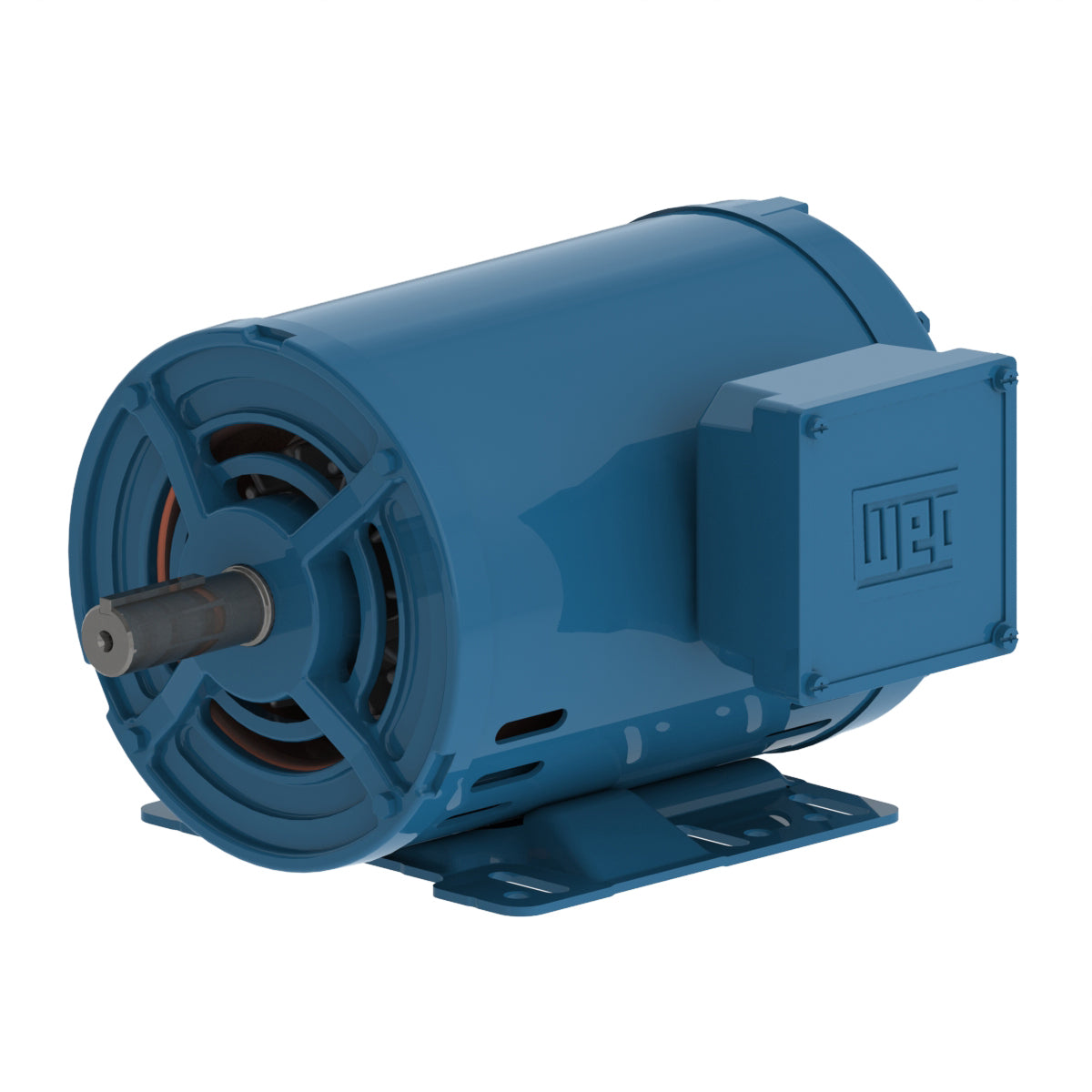

Weg Electric 00218OT3E145TF2, 2 Hp, 1800 Rpm, E143/5T FR, 230/460 Vac, ODP, 3 PH, Foot-mounted, Premium Efficiency.

00218OT3E145TF2, 2 Hp, 1800 Rpm, E143/5T FR, 230/460 Vac, ODP, 3 PH, Foot-mounted, Premium Efficiency.

Engineering Data

Motor with steel plate frame, for general use, developed to meet different applications with maximum performance and economy.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 4
Degree of Protection IP21
Synchronous speed 1800 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC01 - ODP

Frame E143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1730 rpm
Slip 3.89 %
Rated voltage 230/460 V
Rated current 5.80/2.90 A
L. R. Amperes 47.6/23.8 A
LRC 8.2x(Code L)
No load current 3.20/1.60 A
Rated torque 6.07 ft.lb
Locked rotor torque 350 %
Breakdown torque 330 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.1597 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
