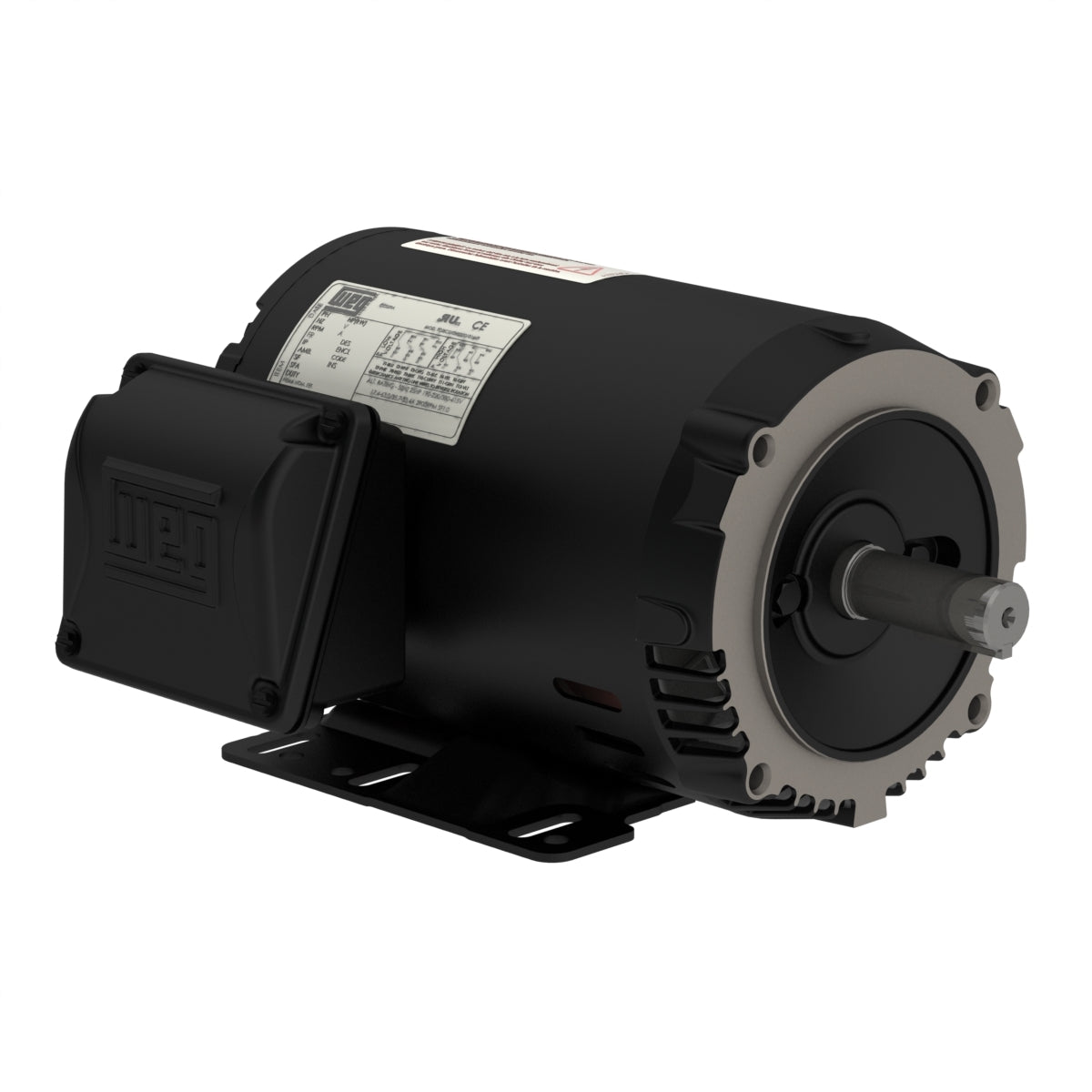

Weg Electric 00218OT3H145JM-S, 2 Hp, 1800 Rpm, 143/5JM FR, 575 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

00218OT3H145JM-S, 2 Hp, 1800 Rpm, 143/5JM FR, 575 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

Engineering Data

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 143/5JM
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 575 V
Rated current 2.15 A
L. R. Amperes 16.6 A
LRC 7.7x(Code K)
No load current 1.10 A
Rated torque 6.04 ft.lb
Locked rotor torque 260 %
Breakdown torque 320 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.1168 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
