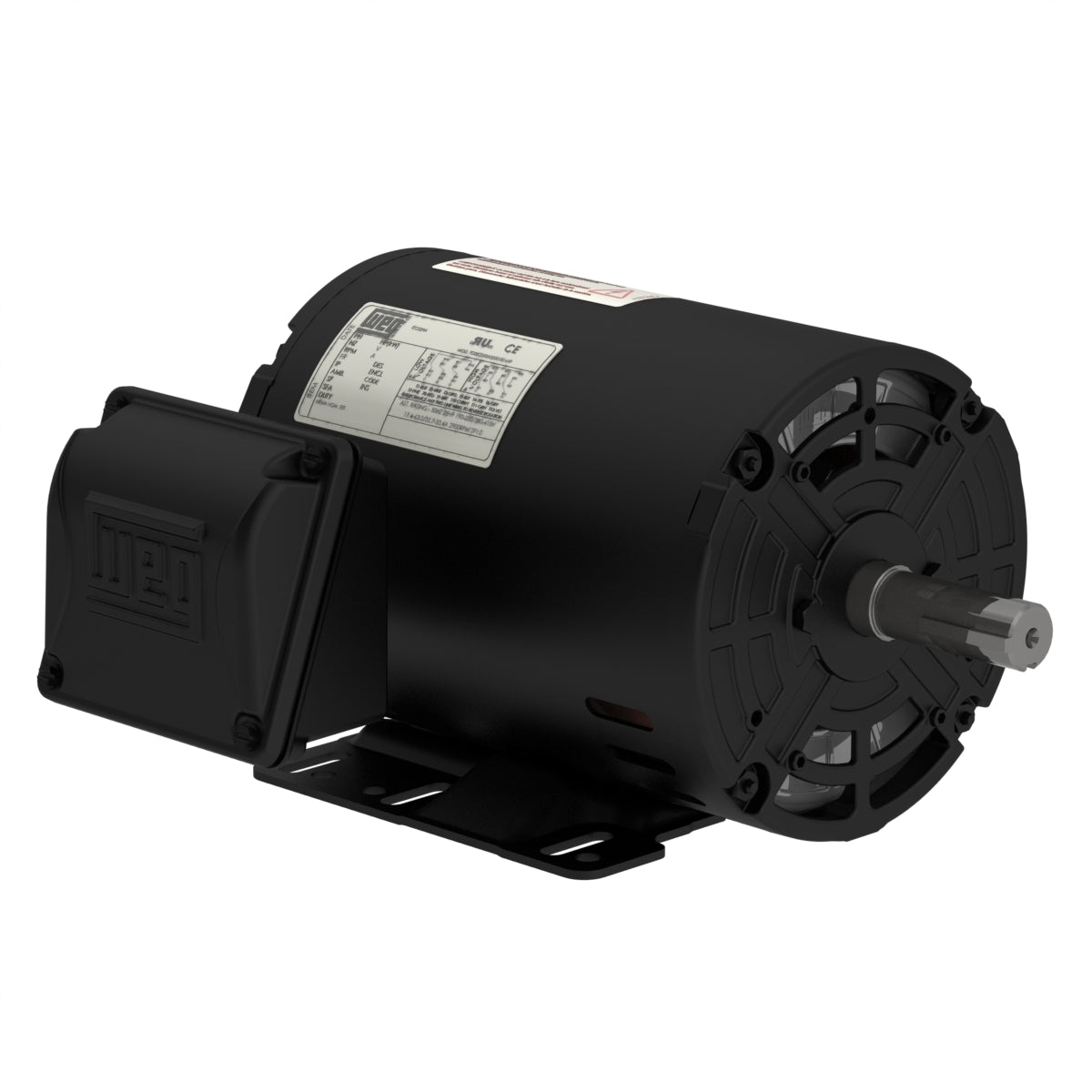

Weg Electric 00218OT3J145T-S, 2 Hp, 1800 Rpm, 143/5T FR, 380/660 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

00218OT3J145T-S, 2 Hp, 1800 Rpm, 143/5T FR, 380/660 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 380/660 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting B3R(D)
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 380/660 V
Rated current 3.26/1.87 A
L. R. Amperes 25.1/14.4 A
LRC 7.7x(Code K)
No load current 1.66/0.956 A
Rated torque 6.04 ft.lb
Locked rotor torque 260 %
Breakdown torque 320 %
Locked rotor time 30s (cold) 17s (hot)
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting B3R(D)
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
