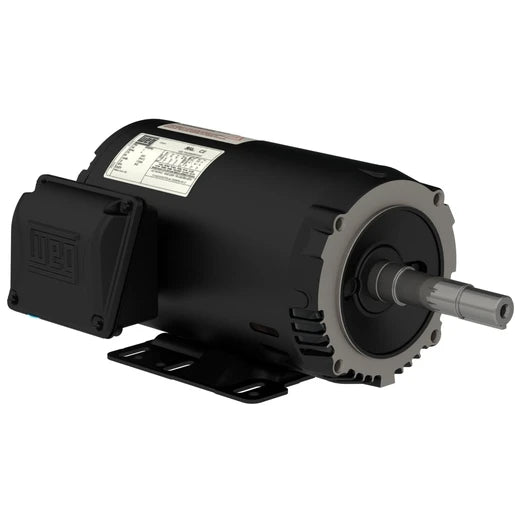

Weg Electric 00218OT3V145JM-S, 2 Hp, 1800 Rpm, 143/5JM FR, 200/400 Vac, ODP, 3 PH, Foot-mounted, NEMA Premium Efficiency, 12845335

Weg Electric 00218OT3V145JM-S, 2 Hp, 1800 Rpm, 143/5JM FR, 200/400 Vac, ODP, 3 PH, Foot-mounted, NEMA Premium Efficiency, 12845335

$540.23
$540.23
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00218OT3V145JM-S, 2 Hp, 1800 Rpm, 143/5JM FR, 200/400 Vac, ODP, 3 PH, Foot-mounted, NEMA Premium Efficiency, 12845335

SPECIFICATIONS

Frame 143/5JM
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 200/400 V
Rated current 6.19/3.09 A
L. R. Amperes 47.6/23.8 A
LRC 7.7x(Code K)
No load current 3.16/1.58 A
Rated torque 6.04 ft.lb
Locked rotor torque 260 %
Breakdown torque 320 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.1168 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 42.1 lb
