Industrial Motors

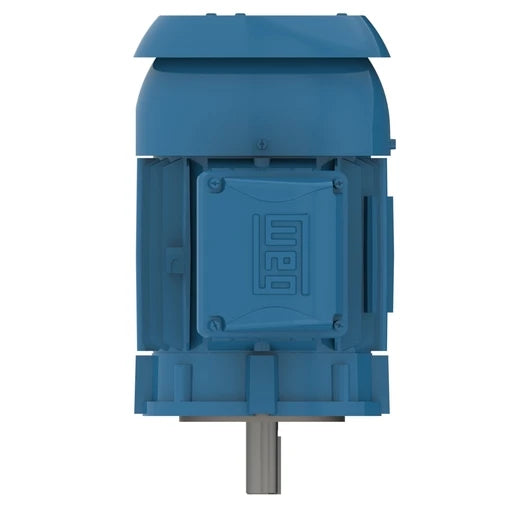

Weg Electric 00218ST3HIER145TC-W2, 2 Hp, 1800 Rpm, 145TC Frame, 575 Vac, TEFC, 3 PH, Footless, NEMA Premium Efficiency, 15459789

Weg Electric 00218ST3HIER145TC-W2, 2 Hp, 1800 Rpm, 145TC Frame, 575 Vac, TEFC, 3 PH, Footless, NEMA Premium Efficiency, 15459789

$982.56
$982.56
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00218ST3HIER145TC-W2, 2 Hp, 1800 Rpm, 145TC Frame, 575 Vac, TEFC, 3 PH, Footless, NEMA Premium Efficiency, 15459789

SPECIFICATIONS

Manufacturer Part Number 00218ST3HIER145TC-W2
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 2HP 4P 145TC WFF2
Type Severe Duty
Horsepower 2 hp
Kilowatts 1.5 kW
Speed 1,800 RPM
Number of Poles 4
Phase 3
Frequency 60 Hz
NEMA Frame 145TC
AC Voltage 575 VAC
Enclosure Totally Enclosed Fan Cooled
Mounting Foot Mount
Current Rating 2.29 A
Service Factor 1.25
Inverter Duty No
Motor Type Footless
Composition Cast Iron
Shaft Diameter 0.88 "
Overload Protection None
Length 14.3 "
Approvals cCSAus, cULus
Net Weight 65.16 lbs
Gross Weight 65.16 lbs
View full details

Attachments
