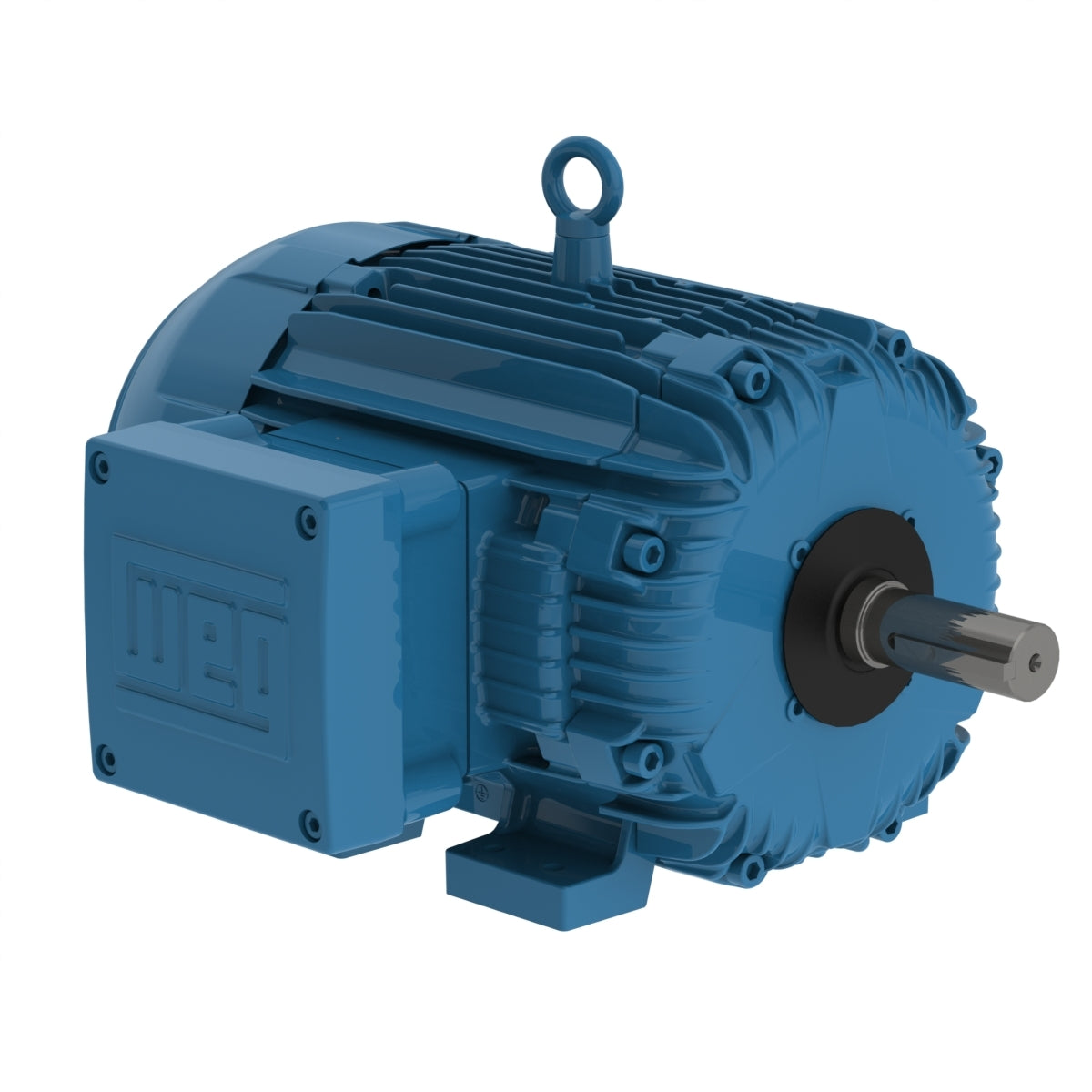

Weg Electric 00226EP3QCT213VF1-W2, 1/2 Hp, 600/1200 Rpm, 213/5T FR, 460 Vac, TEFC, 3 PH, Foot-mounted, Explosion-proof Motor.

00226EP3QCT213VF1-W2, 1/2 Hp, 600/1200 Rpm, 213/5T FR, 460 Vac, TEFC, 3 PH, Foot-mounted, Explosion-proof Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 12/6
Degree of Protection IP55
Synchronous speed 600/1200 rpm
Output rating 0.5/2.0 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5T
Output 0.5 HP (0.37 kW)
Number of Poles 12/6
Frequency 60 Hz
Rated speed 575 rpm
Slip 4.17 %
Rated voltage 460 V
Rated current 1.28 A
L. R. Amperes 4.48 A
LRC 3.5x(Code J)
No load current 1.00 A
Rated torque 4.57 ft.lb
Locked rotor torque 140 %
Breakdown torque 200 %
Locked rotor time 162s (cold) 90s (hot)
Moment of inertia (J) 1.55 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
