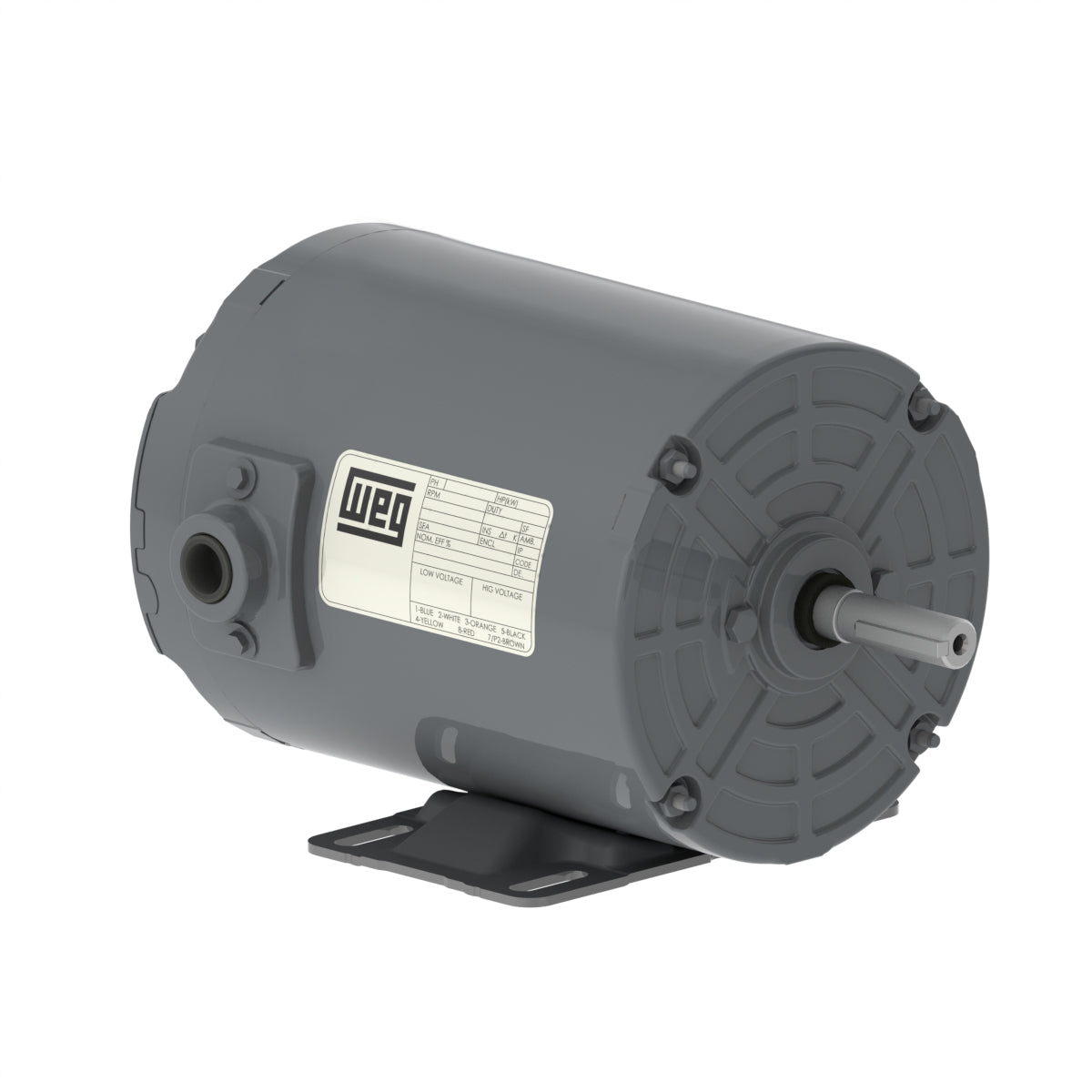

Weg Electric 00236AP3EAF143TZ-S, 2 Hp, 3600 Rpm, 143/5TZ FR, 208-230/460//190-220/380-415 Vac, TEAO, 3 PH, Foot-mounted, Cooling Rolled Steel High Efficiency.

00236AP3EAF143TZ-S, 2 Hp, 3600 Rpm, 143/5TZ FR, 208-230/460//190-220/380-415 Vac, TEAO, 3 PH, Foot-mounted, Cooling Rolled Steel High Efficiency.

Engineering Data

Product features

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO

Frame 143/5TZ
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 208-230/460 V
Rated current 5.64-5.10/2.55 A
L. R. Amperes 47.9-43.3/21.7 A
LRC 8.5x(Code K)
No load current 1.94-2.25/1.12 A
Rated torque 3.00 ft.lb
Locked rotor torque 280 %
Breakdown torque 350 %
Locked rotor time 25s (cold) 14s (hot)
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
