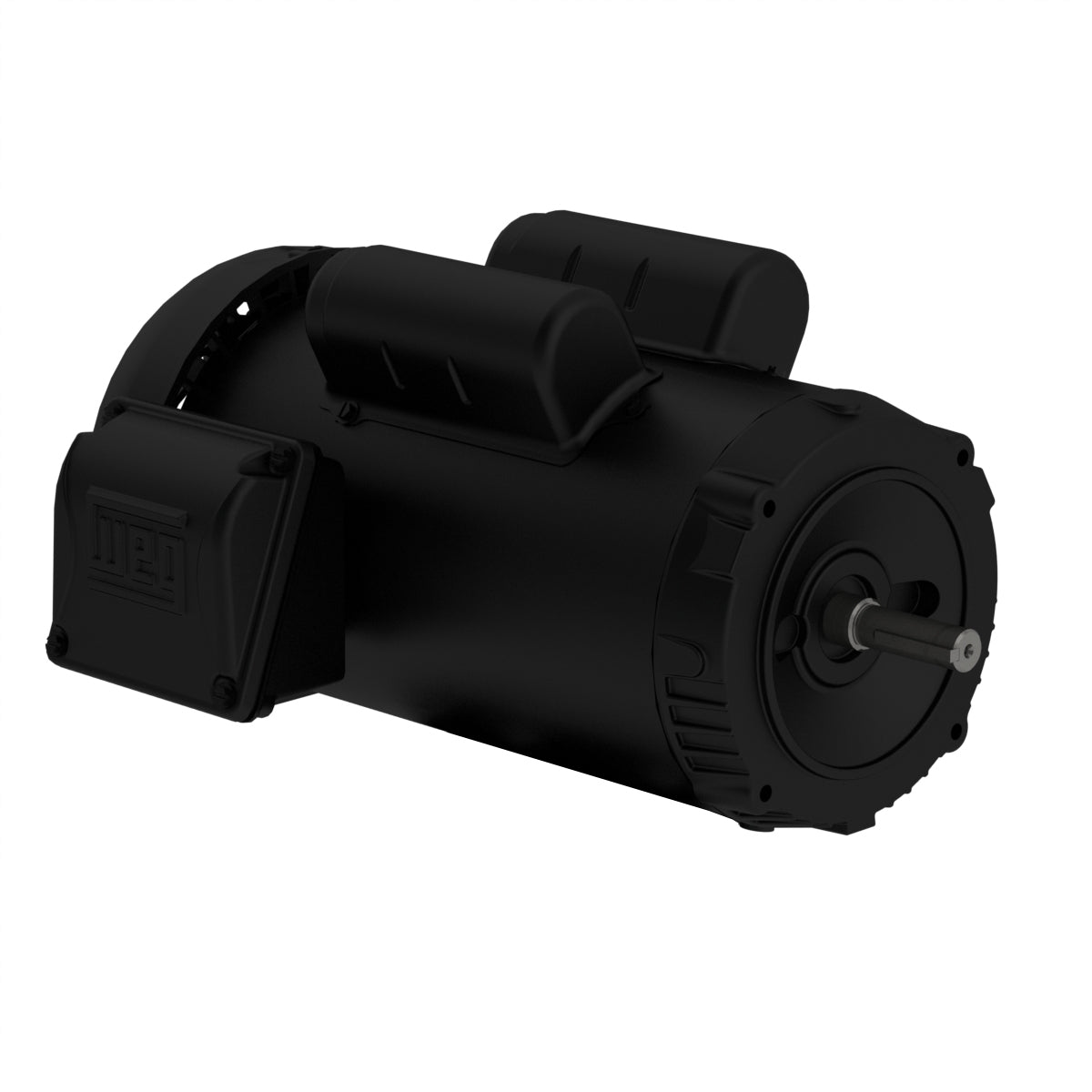

Weg Electric 00236ES1B56CFL-S, 2 Hp, 3600 Rpm, 56C Frame, 115/208-230 Vac, TEFC, 1 Ph., Footless, Rolled Steel.

00236ES1B56CFL-S, 2 Hp, 3600 Rpm, 56C Frame, 115/208-230 Vac, TEFC, 1 Ph., Footless, Rolled Steel.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 2 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 56C
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3495 rpm
Slip 2.92 %
Rated voltage 115/208-230 V
Rated current 17.5/9.62-8.73 A
L. R. Amperes 136/75.0-68.1 A
LRC 7.8x(Code J)
No load current 5.00/2.16-2.50 A
Rated torque 3.01 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0707 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
