Industrial Motors

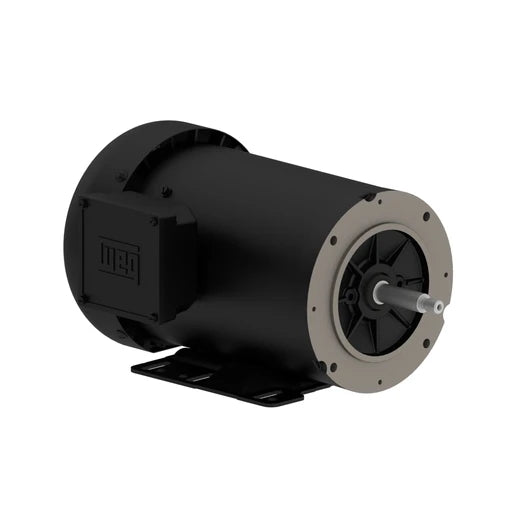

Weg Electric 00236ET3E145JP-SG, 2 Hp, 3600 Rpm, 143/5JP Frame, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump, 14808964

Weg Electric 00236ET3E145JP-SG, 2 Hp, 3600 Rpm, 143/5JP Frame, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump, 14808964

$742.26
$742.26
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00236ET3E145JP-SG, 2 Hp, 3600 Rpm, 143/5JP Frame, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump, 14808964

SPECIFICATIONS

Frame 143/5JP
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 4.94/2.47 A
L. R. Amperes 48.9/24.5 A
LRC 9.9x(Code L)
No load current 2.13/1.06 A
Rated torque 2.98 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.1279 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 44.1 lb
