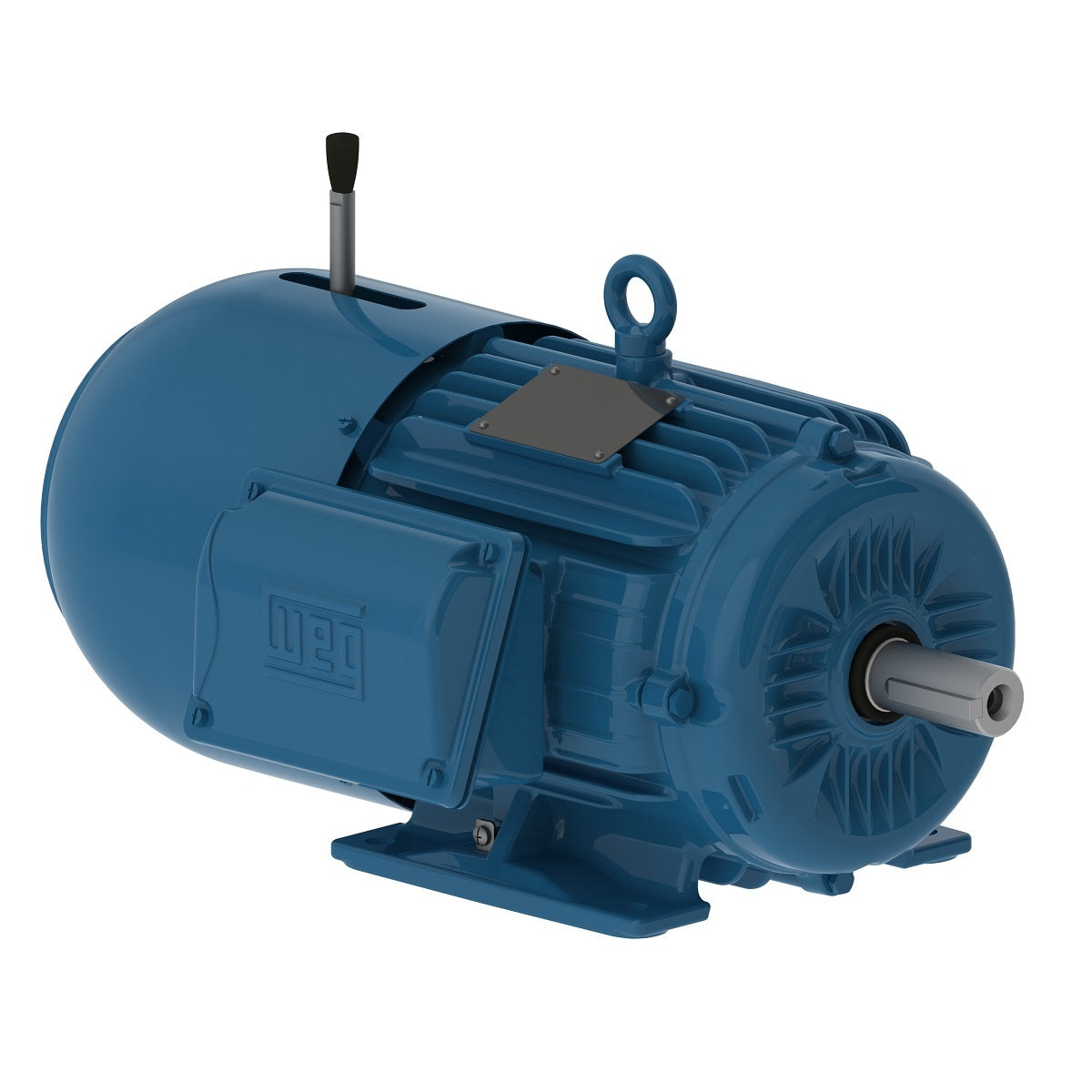

Weg Electric 00236ET3EBM145T-W22, 2 Hp, 3600 Rpm, 143/5T FR, 230/460 Vac, TEFC, 3 PH, Foot-mounted, Brake Motor.

00236ET3EBM145T-W22, 2 Hp, 3600 Rpm, 143/5T FR, 230/460 Vac, TEFC, 3 PH, Foot-mounted, Brake Motor.

Engineering Data

The W22 Brake Motor is the ideal motor for applications that require immediate, accurate and safe stops, and position control. They meet the needs of different applications, such as load elevators, hoists, shears, machining equipment, looms, packaging machines, conveyors, washing and bottling machines, bending machines, among others.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 143/5T
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3475 rpm
Slip 3.47 %
Rated voltage 230/460 V
Rated current 5.12/2.56 A
L. R. Amperes 45.6/22.8 A
LRC 8.9x(Code L)
No load current 1.80/0.900 A
Rated torque 3.02 ft.lb
Locked rotor torque 350 %
Breakdown torque 380 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
