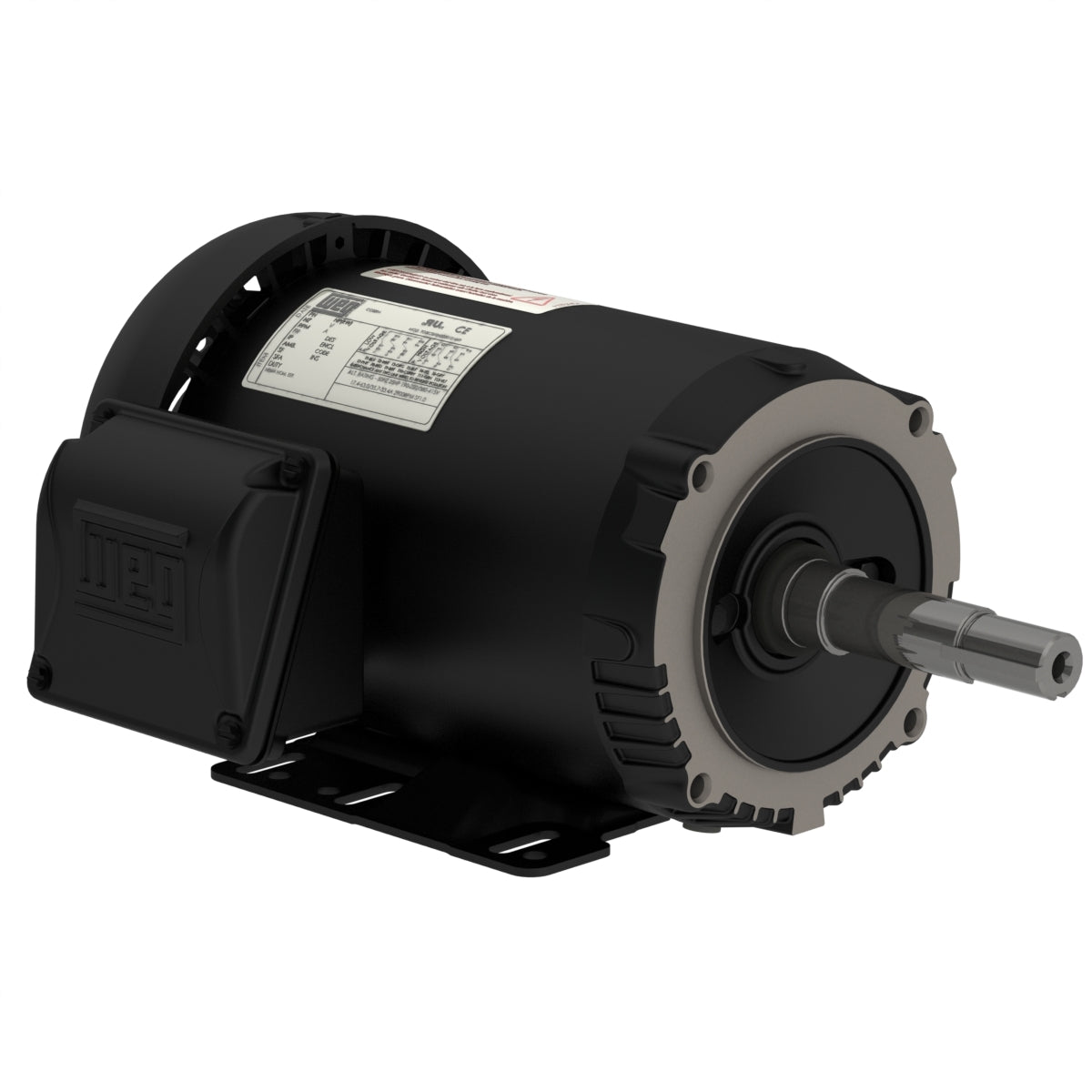

Weg Electric 00236ET3V145JM-S, 2 Hp, 3600 Rpm, 143/5JM FR, 200/400 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel Jet Pump.

00236ET3V145JM-S, 2 Hp, 3600 Rpm, 143/5JM FR, 200/400 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel Jet Pump.

Engineering Data

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 143/5JM
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 200/400 V
Rated current 5.68/2.84 A
L. R. Amperes 56.2/28.1 A
LRC 9.9x(Code L)
No load current 2.44/1.22 A
Rated torque 2.98 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.1279 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
