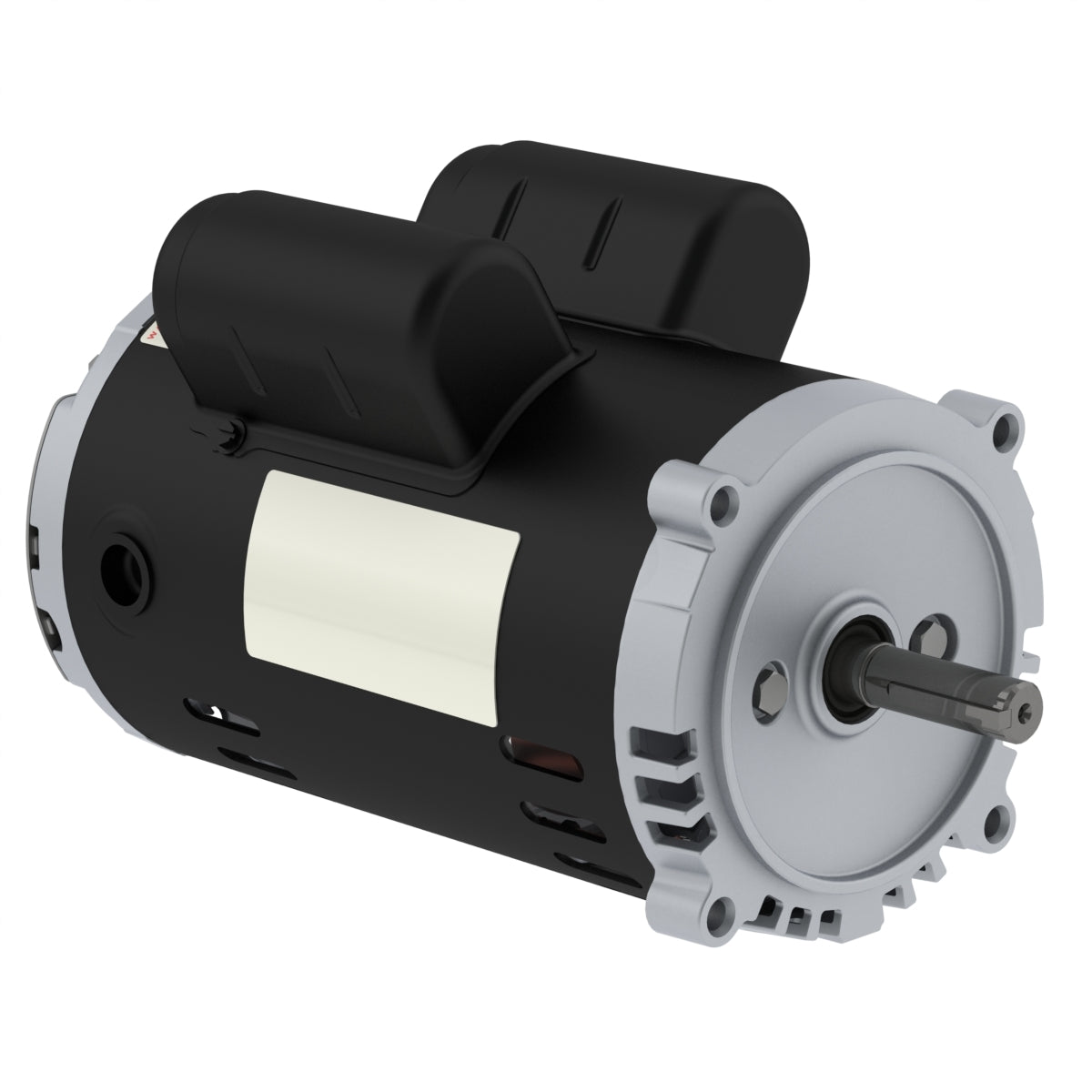

Weg Electric 00236OS1BJPR56J-S, 2 Hp, 56J Frame, 3600 RPM, 115/208-230 Vac, ODP, 1 PH, Footless, Rolled Steel Jet Pump.

00236OS1BJPR56J-S, 2 Hp, 56J Frame, 3600 RPM, 115/208-230 Vac, ODP, 1 PH, Footless, Rolled Steel Jet Pump.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and threaded shaft end, these versatile single-phase motors provide torque and durability for several applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 2 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56J
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3490 rpm
Slip 3.06 %
Rated voltage 115/208-230 V
Rated current 21.8/12.1-10.9 A
L. R. Amperes 170/94.0-85.0 A
LRC 7.8x(Code L)
No load current 12.6/5.43-6.30 A
Rated torque 3.01 ft.lb
Locked rotor torque 250 %
Breakdown torque 260 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0747 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.20 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 58.0 dB(A)
