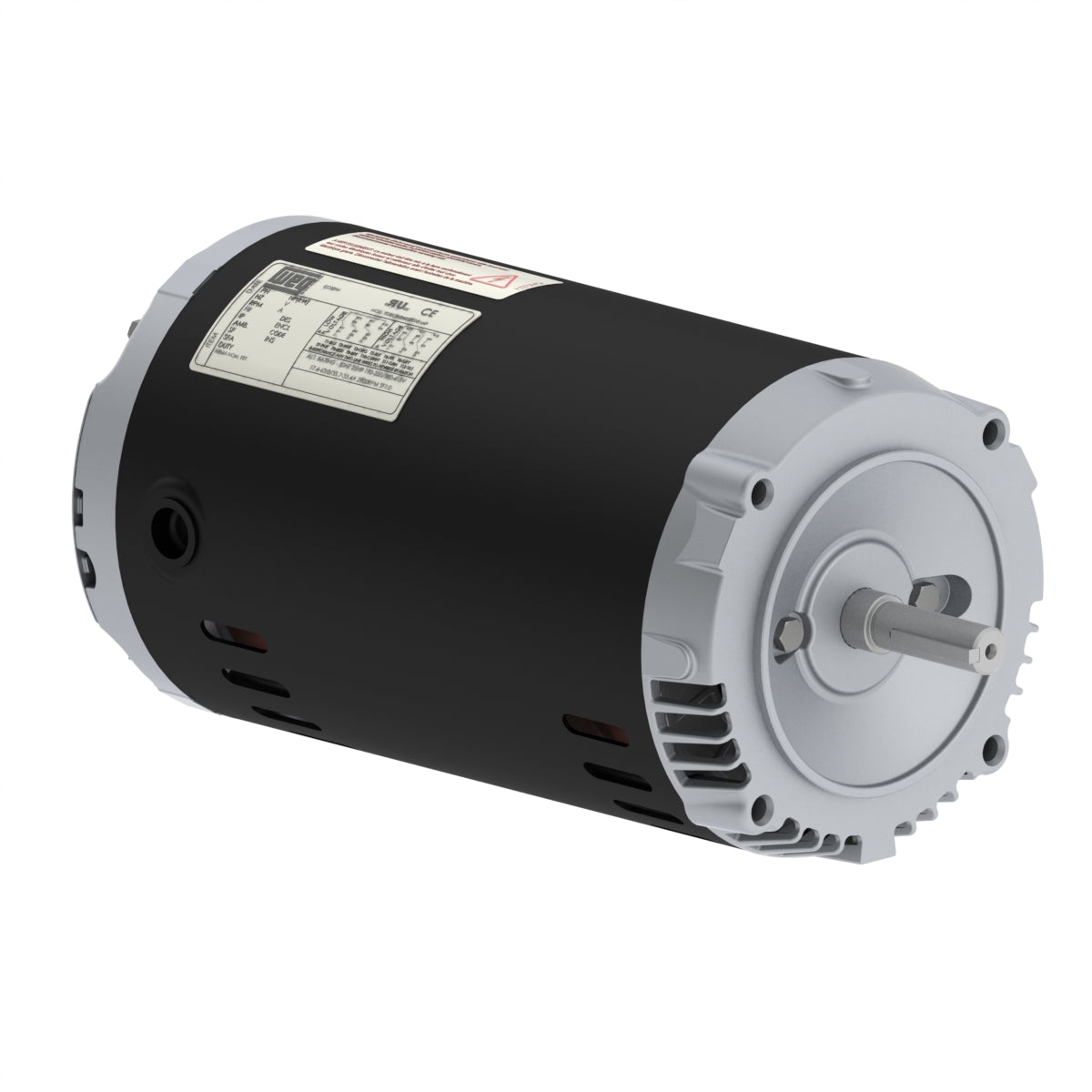

Weg Electric 00236OS3EJPR56J-S, 2 Hp, 56J Frame, 3600 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel Jet Pump.

00236OS3EJPR56J-S, 2 Hp, 56J Frame, 3600 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel Jet Pump.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 2 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56J
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3470 rpm
Slip 3.61 %
Rated voltage 230/460 V
Rated current 5.64/2.82 A
L. R. Amperes 39.5/19.7 A
LRC 7.0x(Code J)
No load current 2.60/1.30 A
Rated torque 3.03 ft.lb
Locked rotor torque 229 %
Breakdown torque 250 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.0774 sq.ft.lb
Design A
Insulation Class F
Temperature rise 80 K
Service factor 1.20 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 62.0 dB(A)
