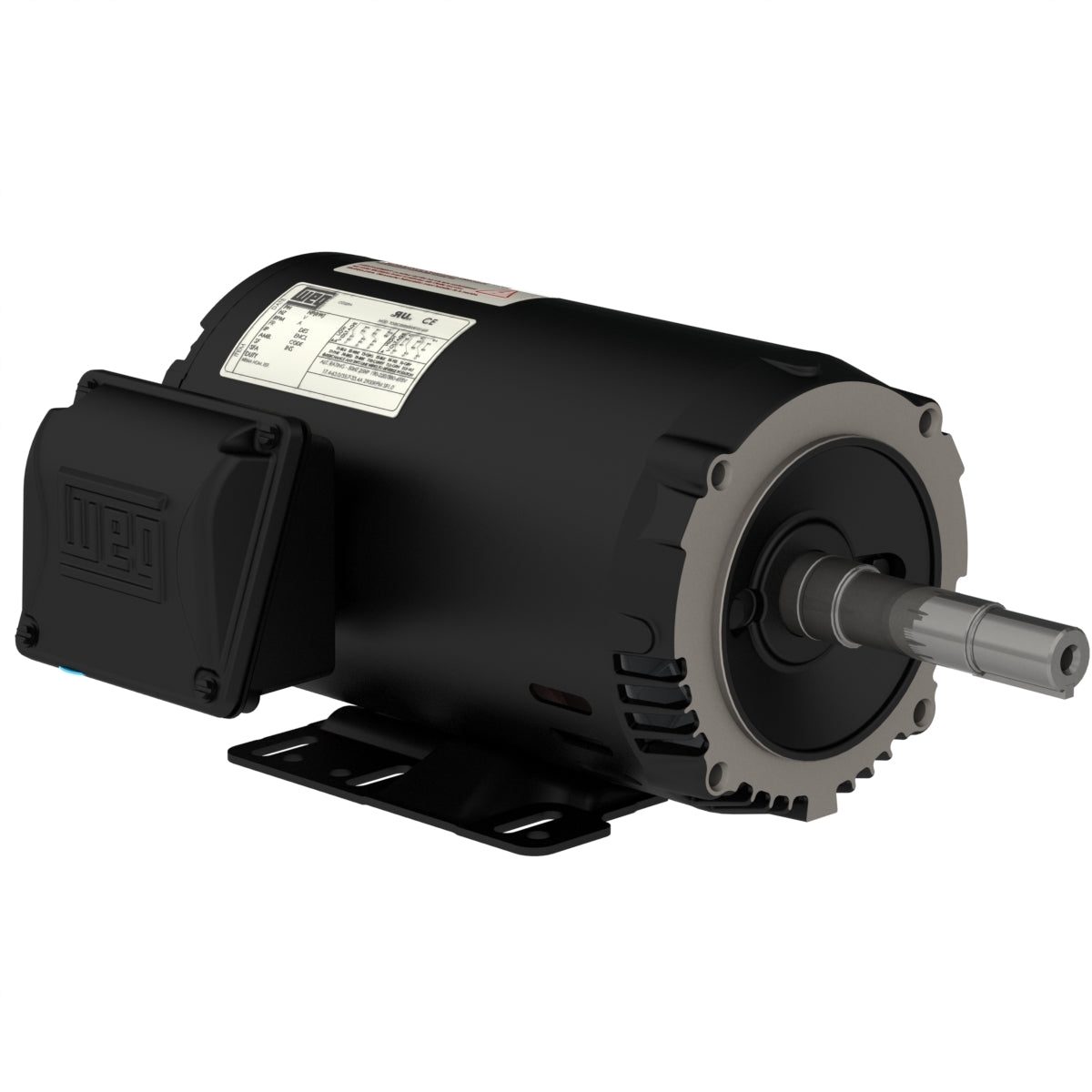

Weg Electric 00236OT3E145JM-S, 2 Hp, 3600 Rpm, 143/5JM Frame, 230/460//190-220/380-415 Vac, ODP, 3 Ph., Foot-mounted, Rolled Steel JM Pump.

00236OT3E145JM-S, 2 Hp, 3600 Rpm, 143/5JM Frame, 230/460//190-220/380-415 Vac, ODP, 3 Ph., Foot-mounted, Rolled Steel JM Pump.

Engineering Data

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 143/5JM
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 4.84/2.42 A
L. R. Amperes 43.1/21.5 A
LRC 8.9x(Code K)
No load current 1.83/0.917 A
Rated torque 2.99 ft.lb
Locked rotor torque 220 %
Breakdown torque 330 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.1151 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
