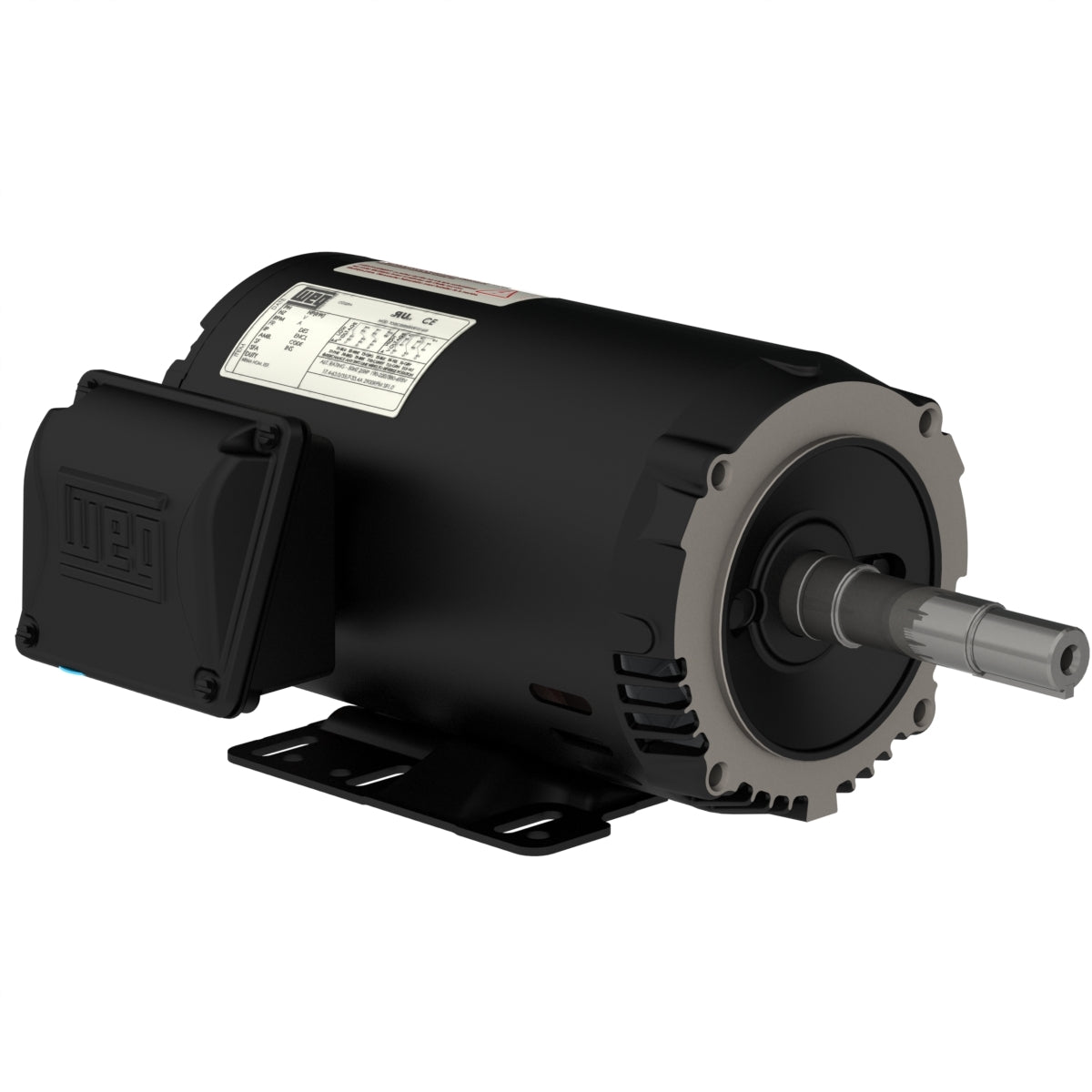

Weg Electric 00236OT3E145JP-S, 2 Hp, 3600 Rpm, 143/5JP Frame, 230/460//190-220/380-415 Vac, ODP, 3 Ph., Foot-mounted, Rolled Steel JP Pump.

00236OT3E145JP-S, 2 Hp, 3600 Rpm, 143/5JP Frame, 230/460//190-220/380-415 Vac, ODP, 3 Ph., Foot-mounted, Rolled Steel JP Pump.

Engineering Data

The W01 “JP” (gasket) motors were especially developed for application on pumps with direct coupling. They maximum performance and robustness in environments where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 143/5JP
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 4.84/2.42 A
L. R. Amperes 43.1/21.5 A
LRC 8.9x(Code K)
No load current 1.83/0.917 A
Rated torque 2.99 ft.lb
Locked rotor torque 220 %
Breakdown torque 330 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.1151 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
