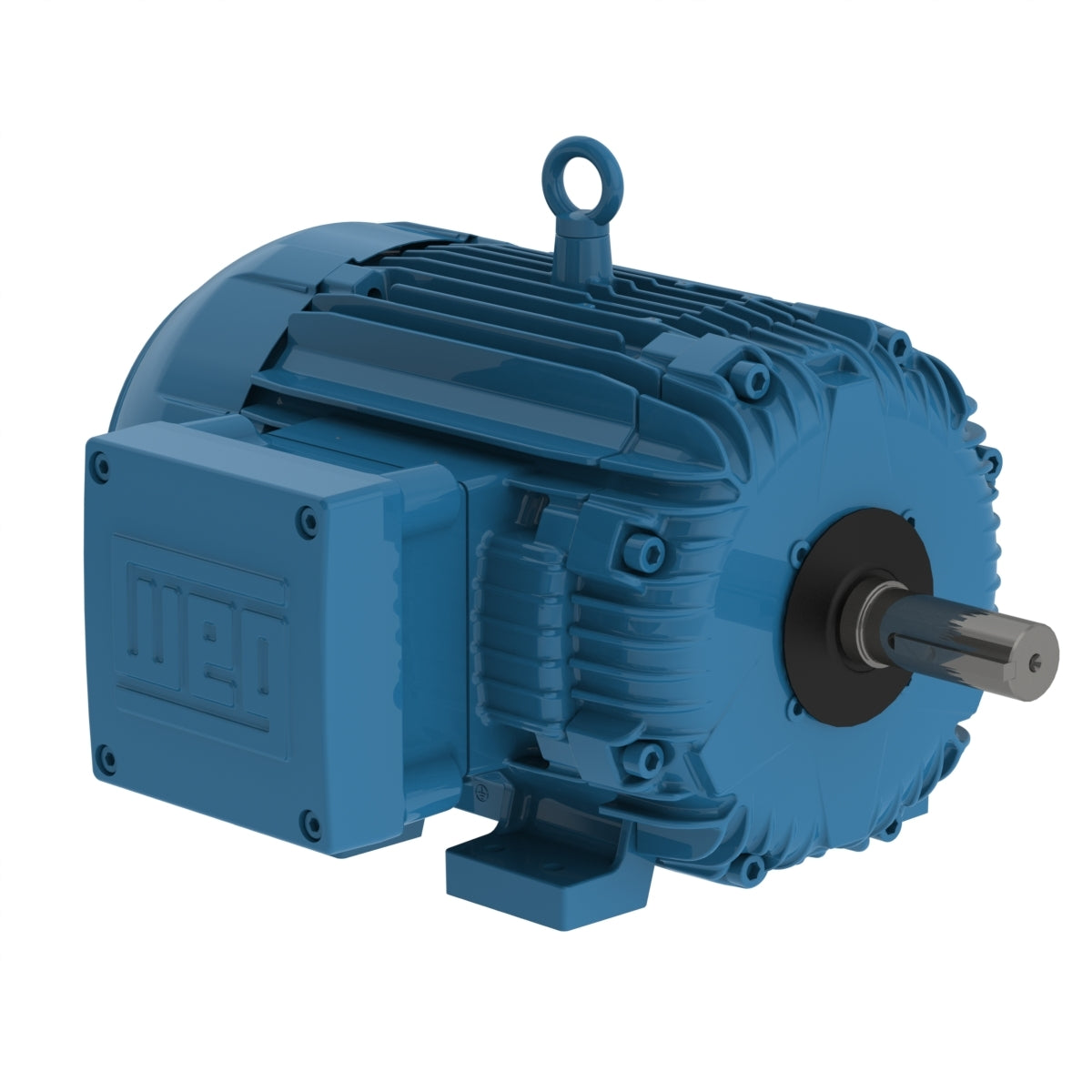

Weg Electric 00312AT3ECT213TF1-W2, 3 Hp, 1200 Rpm, 213T FR, 208-230/460//380 Vac, TEAO, 3 PH, Foot-mounted, Cooling Tower.

00312AT3ECT213TF1-W2, 3 Hp, 1200 Rpm, 213T FR, 208-230/460//380 Vac, TEAO, 3 PH, Foot-mounted, Cooling Tower.

Engineering Data

These TEFC motors are built according to NEMA standard, and designed to operate with 100% of humidity in the most corrosive environments. All the line is certified for use with frequency inverter, and can operate in both the horizontal and vertical position. The Cooling Tower was tested according to the IEEE 112, method B, and it has efficiency values certified by UL (CSA C390). They ensure high efficiency levels with high torque, even at low speeds.

Frame 213T
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 208-230/460 V
Rated current 9.76-8.83/4.41 A
L. R. Amperes 68.3-61.8/30.9 A
LRC 7.0x(Code K)
No load current 4.74-5.50/2.75 A
Rated torque 13.4 ft.lb
Locked rotor torque 200 %
Breakdown torque 280 %
Locked rotor time 104s (cold) 58s (hot)
Moment of inertia (J) 1.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
