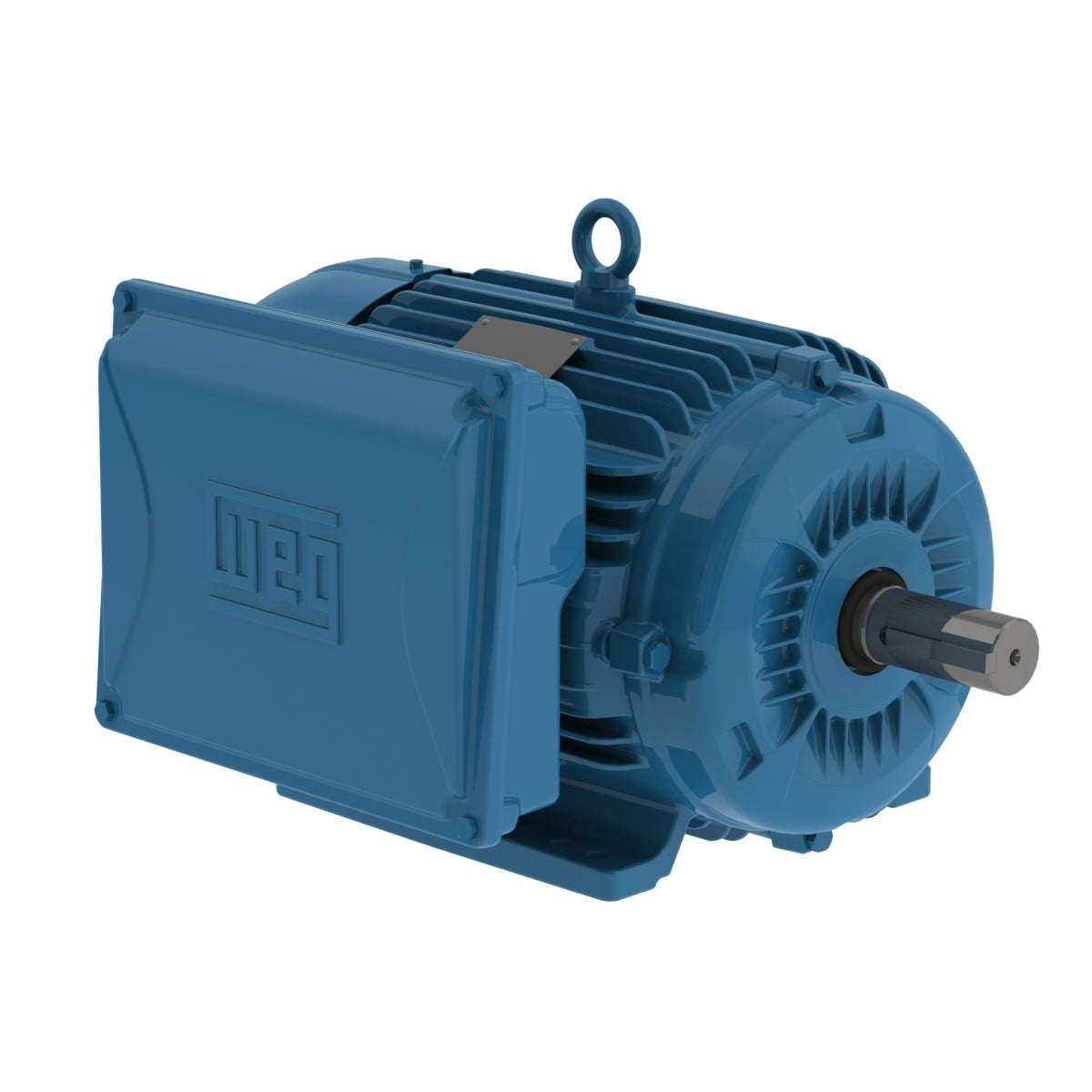

Weg Electric 00312ES1E215T-W22, 3 Hp, 1200 Rpm, 213/5T Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted.

00312ES1E215T-W22, 3 Hp, 1200 Rpm, 213/5T Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted.

Engineering Data

High starting torque
Suitable for domestic and rural power supply conditions
Adaptable design suitable for a variety of applications and needs

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5T
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 14.5-13.4/6.68 A
L. R. Amperes 107-98.9/49.4 A
LRC 7.4x(Code J)
No load current 4.83-5.60/2.80 A
Rated torque 13.5 ft.lb
Locked rotor torque 180 %
Breakdown torque 200 %
Locked rotor time 9s (cold) 5s (hot)
Moment of inertia (J) 1.28 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
