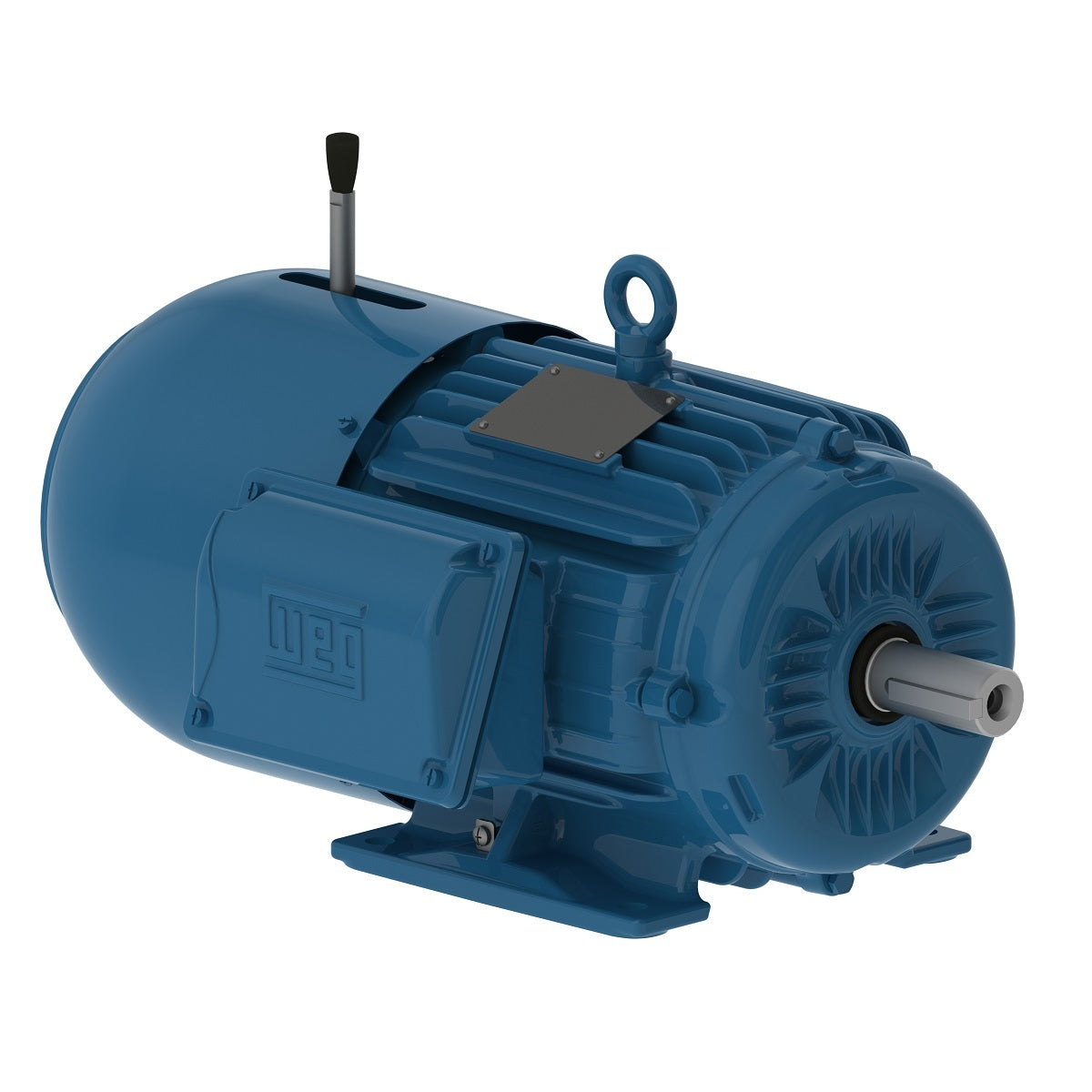

Weg Electric 00312ET3EBM213T-W22, 3 Hp, 1200 Rpm, 213/5T FR, 230/460 Vac, TEFC, 3 PH, Foot-mounted, Brake Motor.

00312ET3EBM213T-W22, 3 Hp, 1200 Rpm, 213/5T FR, 230/460 Vac, TEFC, 3 PH, Foot-mounted, Brake Motor.

Engineering Data

The W22 Brake Motor is the ideal motor for applications that require immediate, accurate and safe stops, and position control. They meet the needs of different applications, such as load elevators, hoists, shears, machining equipment, looms, packaging machines, conveyors, washing and bottling machines, bending machines, among others.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5T
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 8.83/4.41 A
L. R. Amperes 61.8/30.9 A
LRC 7.0x(Code K)
No load current 5.50/2.75 A
Rated torque 13.4 ft.lb
Locked rotor torque 200 %
Breakdown torque 280 %
Locked rotor time 104s (cold) 58s (hot)
Moment of inertia (J) 1.20 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
